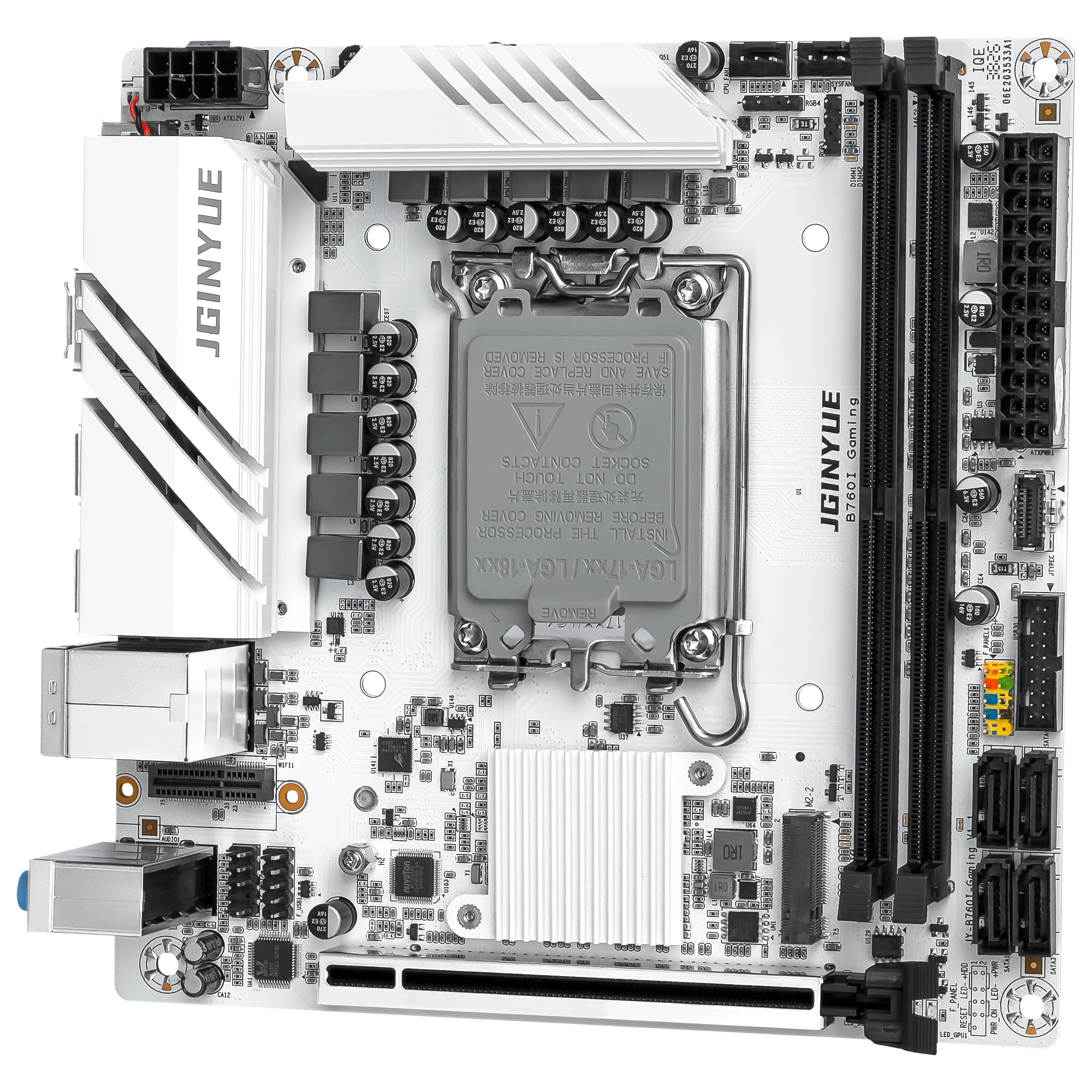

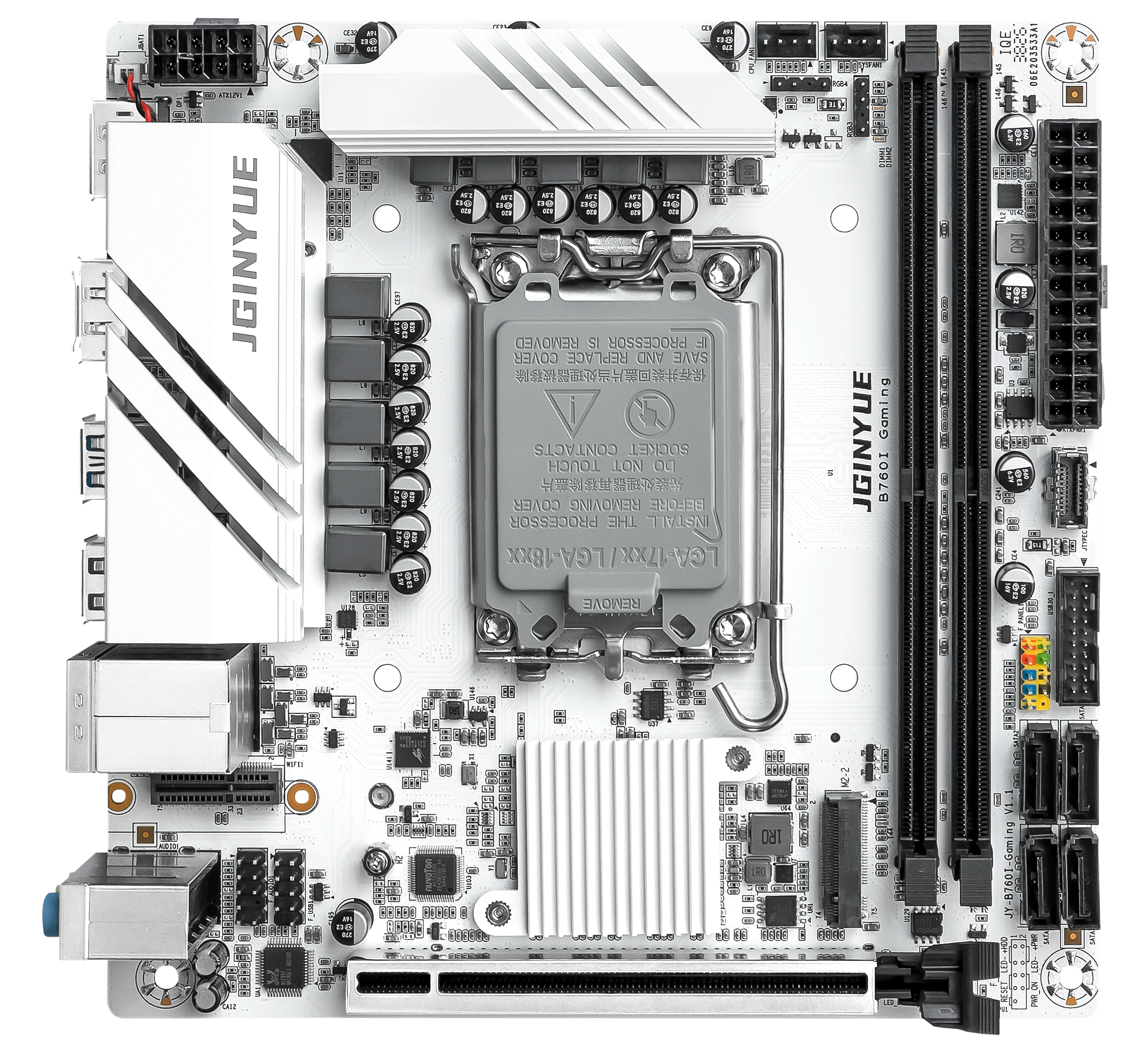

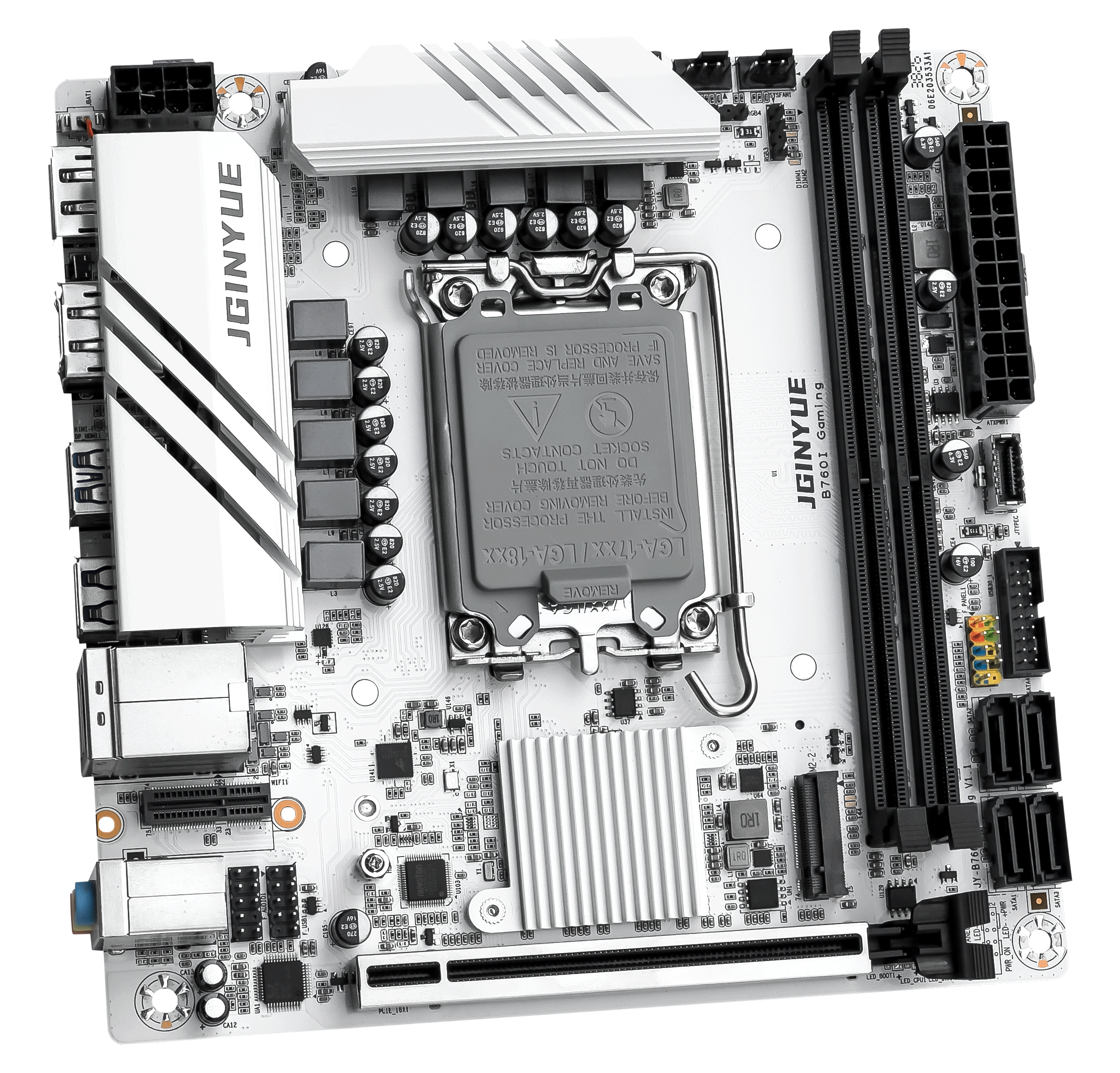

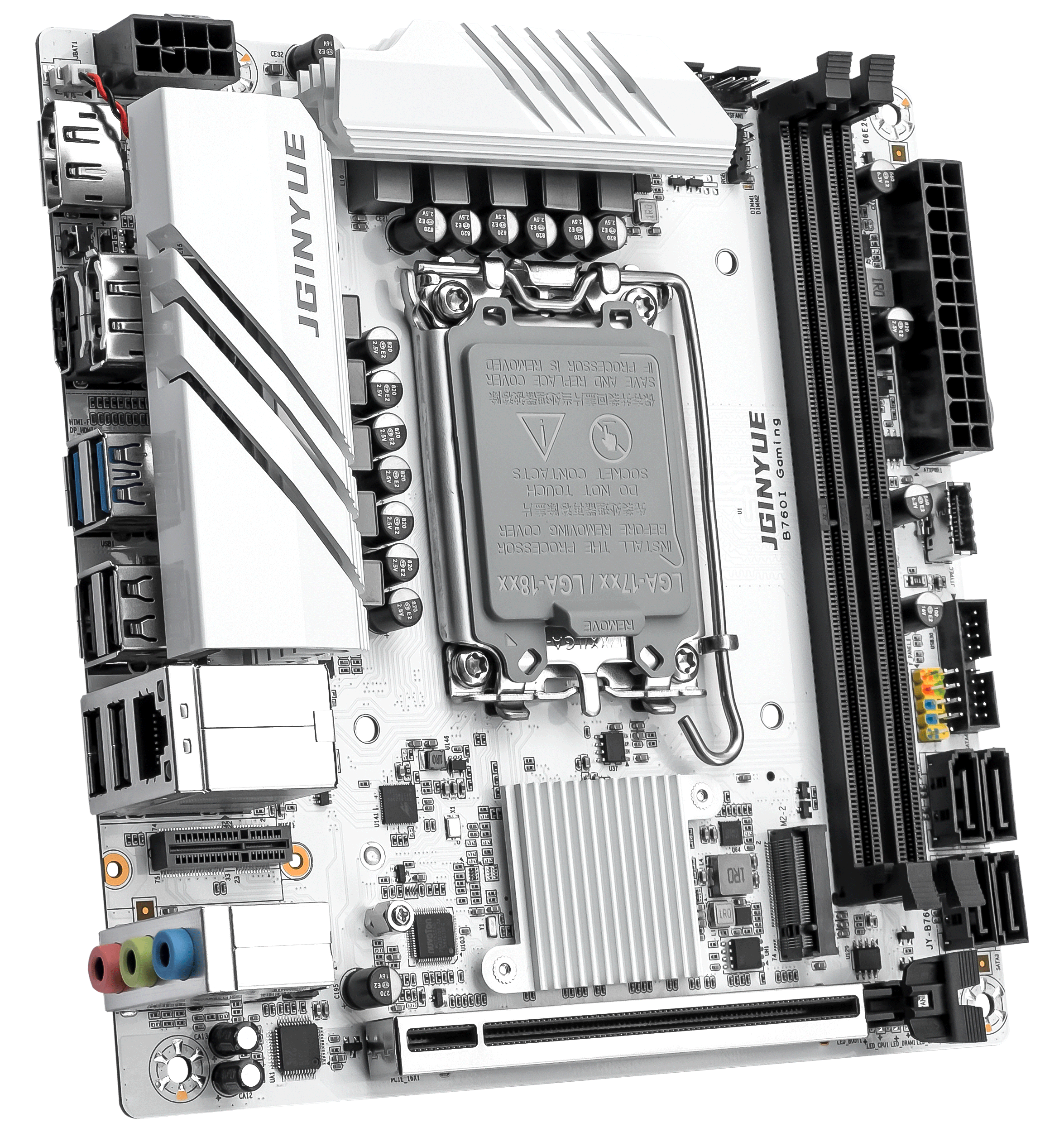

JGINYUE B760I GAMING motherboard
Supports LGA1700 series processors
Two DDR4 dual channel memory slots support up to 64GB of memory
G1 mode 2133-4200MHz (actual situation may vary depending on different CPU and memory configurations)
G2 mode 2133-4800MHz (actual situation may vary depending on different CPU and memory configurations)
10 phase power supply

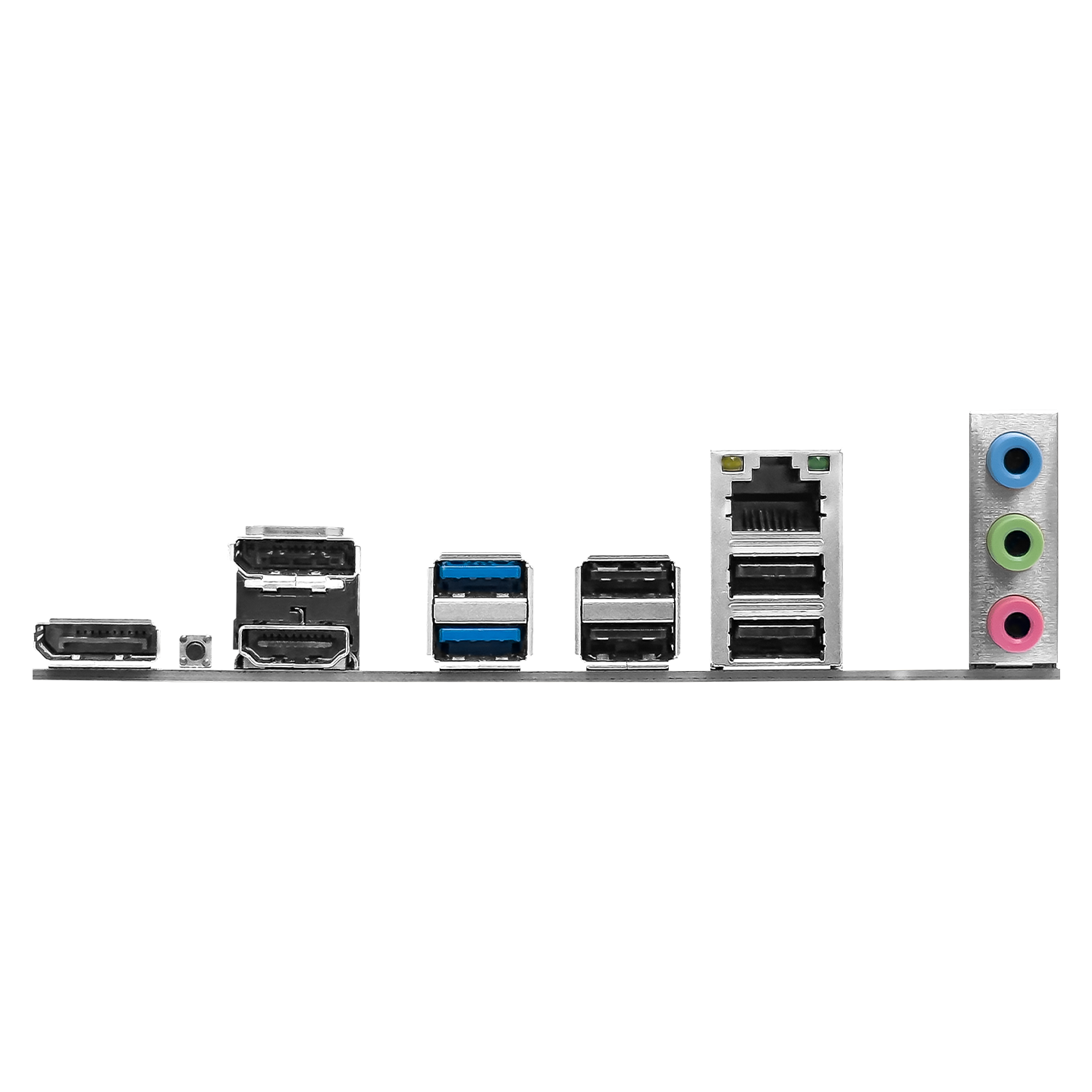

Rear USB 3.2x2 USB 2.0x4 Front USB pin USB 3.2x1 USB 2.0x1
SATA3.0 * 4
1 * PCI-E x16
2.5G network card x1
2xM.2 supports NVME protocol 4.0 speed
1xtypec interface (only supports storage devices such as USB drives, portable hard drives, etc.)
HDMIx1 DPx2
1xwifi interface compatible with CNVI and PCIE protocols
  • Details Introduction
  • specification parameter
  • download
  • Motherboard model
  • B760I GAMING
  • Chipset
  • Intel B760
  • CPU pins
  • Supports Intel's 12th and 13th generation LGA1700 platform processors
  • Memory slot
  • 2 DDR4 memory slots
  • Memory capacity
  • Maximum support for 64G
  • Memory standard
  • Supports dual channel DDR4 G1 mode 2133-4200MHz (actual situation may vary depending on different CPU and memory configurations), G2 mode 2133-4800MHz (actual situation may vary depending on different CPU and memory configurations)
  • Display interface
  • 1 HDMI interface; 2 DP interfaces
  • Storage interface
  • 4 SATA3.0 6Gbps interfaces; Two M.2 nvme protocol 4.0 rate X4 interfaces
  • USB interface
  • 4 rear USB 2.0 and 2 USB 3.2; Front 1 USB 2.0 and 1 USB 3.2
  • Expansion Slots
  • 1 PCI Express 4.0 x16 slot
  • Wireless interface
  • 1 WiFi interface (compatible with PCIe protocol/CNVI protocol)
  • Onboard sound card
  • Realtek ALC897
  • Onboard network card
  • 2.5G network card interface
  • Power supply socket
  • 24pin+8pin
  • Fan pin
  • Two 4-pin needles
  • Number of power supply phases
  • 10 phase power supply
  • RGB pin
  • Two 5v3 pin RGB interfaces
  • Size specifications
  • 17x17cm ITX version
  • support system
  • Windows 10 Windows 11
  • Other interfaces
  • 1 one click clear bios button; 1 Type-C interface; DEBUG diagnostic light
Alsa
Software Download
BIOS
instruction book
    • FileVersion System Updated Date brief introduction download
    B760I GAMING Motherboard chipset driver win10,win11 64 bits 2024-05-07 Motherboard chipset driver
    B760I GAMING Motherboard network card driver win10,win11 64 bits 2024-05-07 Network Driver
    B760I GAMING Motherboard sound card driver win10,win11 64 bits 2024-05-07 audio driver
    • FileVersion System Updated Date brief introduction download
    B760I GAMING Motherboard RGB desktop control software win10,win11 64 bits 2024-05-07 RGB desktop control software
    B760I GAMING Motherboard RGB desktop control software win10,win11 64 bits 2024-05-07 RGB desktop control software
    • FileVersion System Updated Date brief introduction download
    B760I GAMING (JYB7IG10)(104) win10&win11 2024-12-19 Fixed the bug that the language of the top menu column did not change when the BIOS was switched to English (104 microcode version)
    B760I GAMING (JYB7IG10)(0x12B) win10&win11 2024-12-19 Fixed the bug that the language of the top menu column did not change when the BIOS was switched to English (0X12B microcode version)
    B760I GAMING Motherboard BIOS win10,win11 64位 2024-09-18 Added anti-voltage drop function, fixed overwrite voltage (104 microcode version)
    B760I GAMING Motherboard BIOS 2024-07-11 BIOS
    B760I GAMING MOTHERBOARD BIOS win10,win11 64位 2024-05-28 Updated and optimized CPU microcode, added options for DTT, ODT, TX, AC, DC functions (104 microcode version)
    B760I GAMING MOTHERBOARD BIOS win10,win11 64位 2024-05-28 Updated and optimized the CPU microcode, and added the option of DTT, ODT, TX, AC, DC functions
    B760I GAMING Motherboard BIOS file win10,win11 64 bits 2023-11-24 With 104 microcode, support 14 generations
    B760I GAMING Motherboard BIOS file win10,win11 64 bits 2023-11-13 Update to support 14 generations of processors
    B760I GAMING Motherboard BIOS file win10,win11 64 bits 2023-08-01 Fix HDD 4k rate issue, add 104 microcode
    B760I GAMING Motherboard BIOS file win10,win11 64 bits 2023-07-18 Fix hard disk 4k rate anomalies
