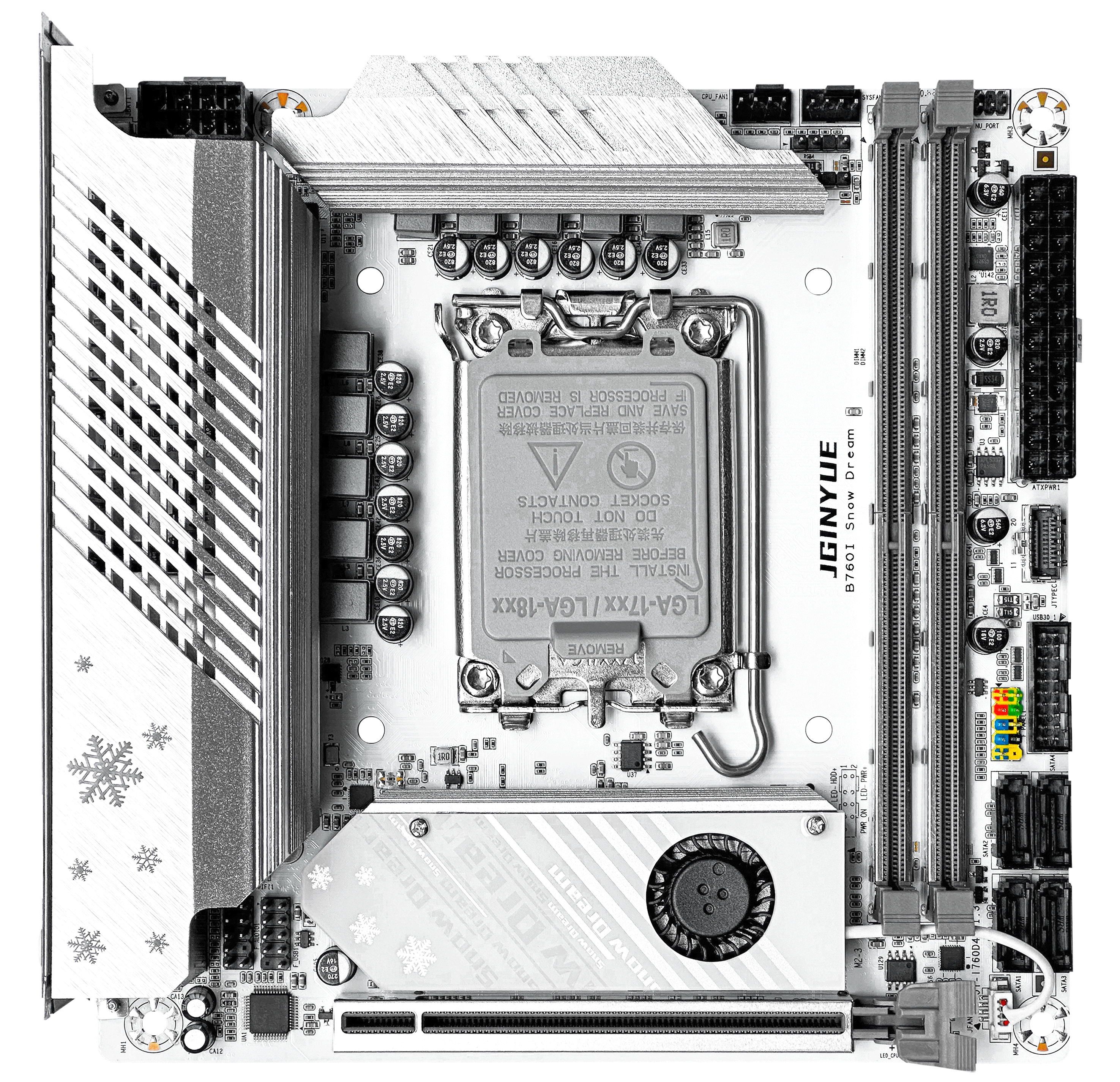

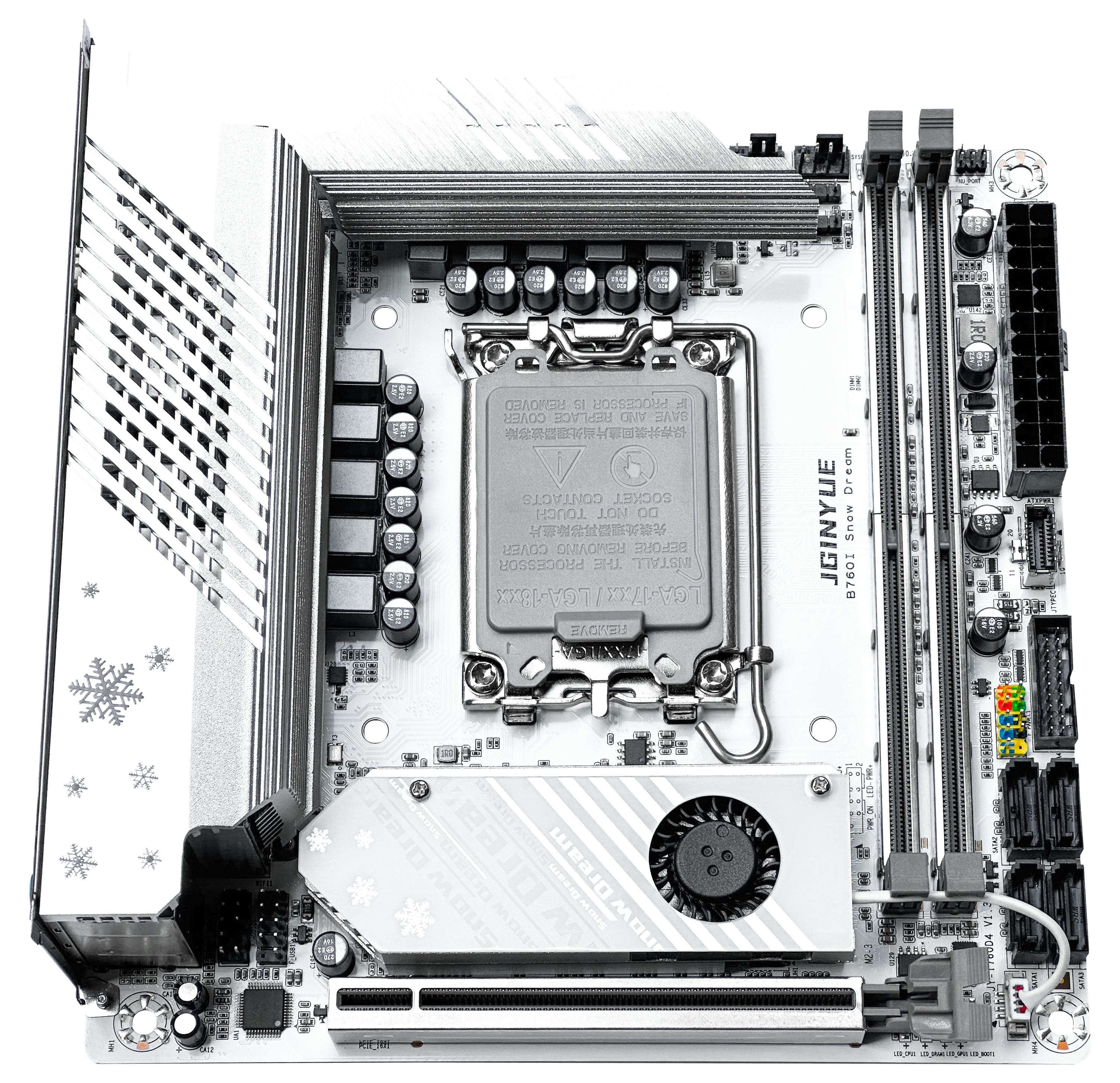

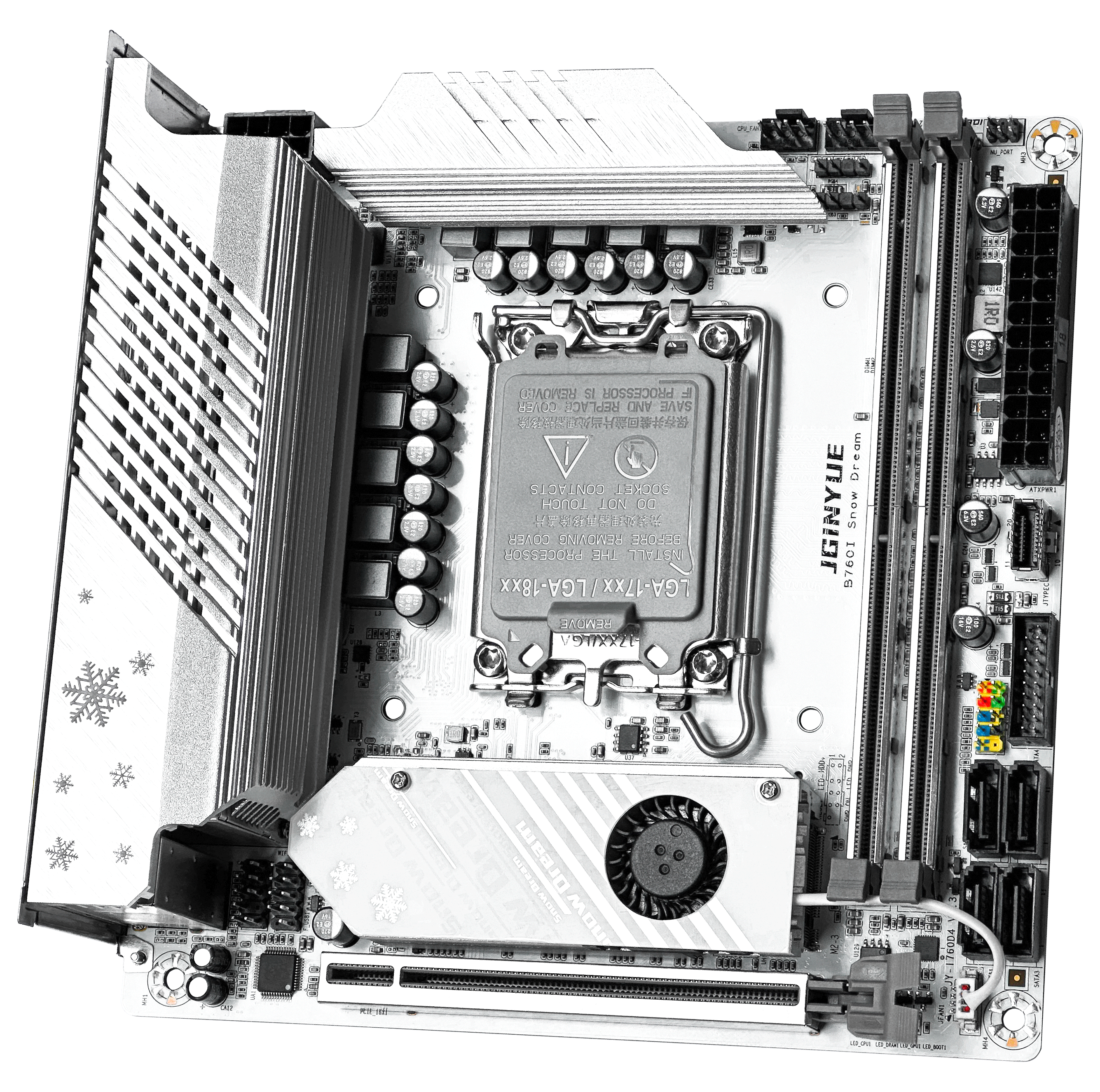

JGINYUE B760I Snow Dream motherboard V1.3version
Support LGA1700 series processors
2xDDR4 dual channel memory slots support up to 64GB of memory
G1 mode 2133-4200MHz (actual situation may vary depending on different CPU and memory configurations)
G2 mode 2133-4800MHz (actual situation may vary depending on different CPU and memory configurations)
Desktop universal memory
Supports 5.1 channels
8+1+1 phase power supply DR MOS
Rear 2xUSB 3.2, 3xUSB 2.0 Front USB Pin 1xUSB 3.2, 1xUSB 2.0
4xSATA3.0
1xPCI-E x16
1x2.5G network card interface, 1x Gigabit network card interface

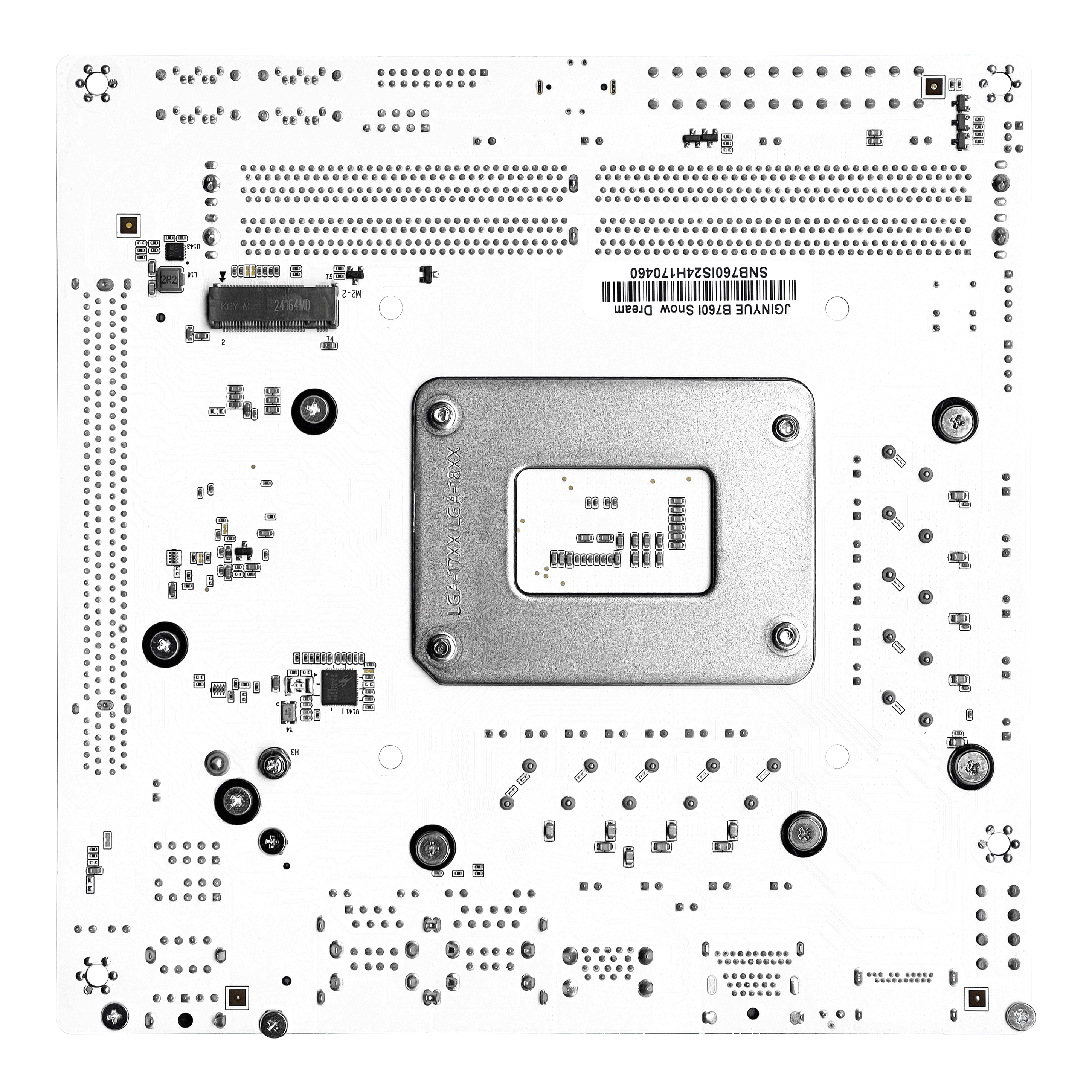

2xM.2 supports NVME protocol 4.0 speed (one on each side)
1x front TypeC interface (only supports storage devices such as USB flash drives, portable hard drives, etc.)

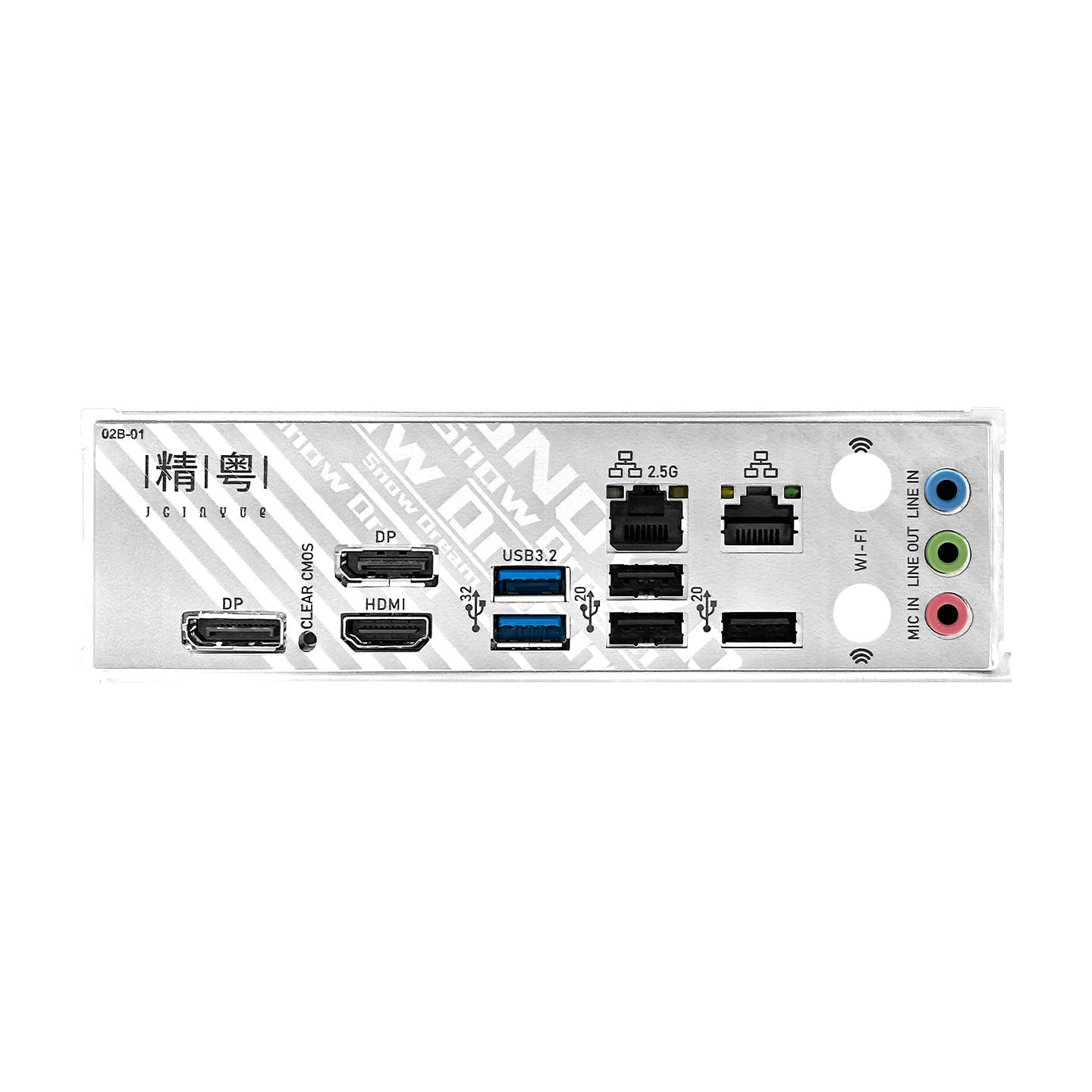

1xHDMI，2xDP
The 1xWiFi interface is compatible with CNVI and PCIE protocols
2xDDR4 dual channel memory slots support up to 64GB of memory
G1 mode 2133-4200MHz (actual situation may vary depending on different CPU and memory configurations)
G2 mode 2133-4800MHz (actual situation may vary depending on different CPU and memory configurations)
Desktop universal memory
Supports 5.1 channels
8+1+1 phase power supply DR MOS
Rear 2xUSB 3.2, 3xUSB 2.0 Front USB Pin 1xUSB 3.2, 1xUSB 2.0
4xSATA3.0
1xPCI-E x16
1x2.5G network card interface, 1x Gigabit network card interface
2xM.2 supports NVME protocol 4.0 speed (one on each side)
1x front TypeC interface (only supports storage devices such as USB flash drives, portable hard drives, etc.)
1xHDMI，2xDP
The 1xWiFi interface is compatible with CNVI and PCIE protocols
- Details Introduction
- specification parameter
- download
-
Motherboard model
-
B760I Snow Dream V1.3 version
-
Chipset
-
intel B760
-
CPU pins
-
Supports Intel's 12th, 13th, and 14th generation processors
-
Memory slot
-
2xDDR4 memory slots
-
Memory capacity
-
Maximum capacity supports 64G
-
Memory standard
-
Supports dual channel DDR4, G1 mode 2133-4200MHz (actual situation may vary depending on different CPU and memory configurations), G2 mode 2133-4800MHz (actual situation may vary depending on different CPU and memory configurations)
-
Display interface
-
1xHDMI，2xDP
-
Storage interface
-
4xSATA3.0 6Gbps interface; 2xM.2 nvme protocol 4.0 speed interface (one on each side)
-
USB interface
-
Rear 2xUSB3.2, 3xUSB2.0; The front 1xUSB3.0 pin can accommodate 2 additional external USB3.2 interfaces, while the 1xUSB2.0 pin can accommodate 2 additional external USB2.0 interfaces
-
Expansion Slots
-
1xPCI Express x16 slot
-
Wireless interface
-
The 1xWiFi interface is compatible with CNVI and PCIE protocols
-
Onboard sound card
-
Realtek ALC897
-
Onboard network card
-
1x2.5g network card interface, 1x gigabit network card interface
-
Power socket
-
1x24Pin motherboard power supply; 1x8Pin processor power supply
-
Number of power supply phases
-
8+1+1 phase power supply DR MOS
-
RGB pin
-
2x5v3 pin RGB MCU control chip
-
Size specifications
-
17cmx17cm； ITX
-
support system
-
Windows10；Windows11
-
Other interfaces
-
One click clear BIOS button; DEBUG diagnostic light; Type-C interface front-end
Alsa
Software Download
BIOS
instruction book
| FileVersion | System | Updated Date | brief introduction | download |
|---|---|---|---|---|
| B760I Snow Dream V1.3 | 2024-09-25 | DTT driver |
|
|
| B760I Snow Dream V1.3 | 2024-09-25 | Motherboard chipset driver |
|
|
| B760I Snow Dream V1.3 | 2024-09-25 | Management engine driver program |
|
|
| B760I Snow Dream V1.3 | 2024-09-25 | Sound card driver |
|
|
| B760I Snow Dream V1.3 | 2024-09-25 | Network card driver |
|
|
| B760I Snow Dream V1.3 | 2024-09-25 | Intel Serial IO driver |
|
| FileVersion | System | Updated Date | brief introduction | download |
|---|---|---|---|---|
| OpenRGB-MCU-20240913 | 2024-09-16 | RGB desktop control software |
|
