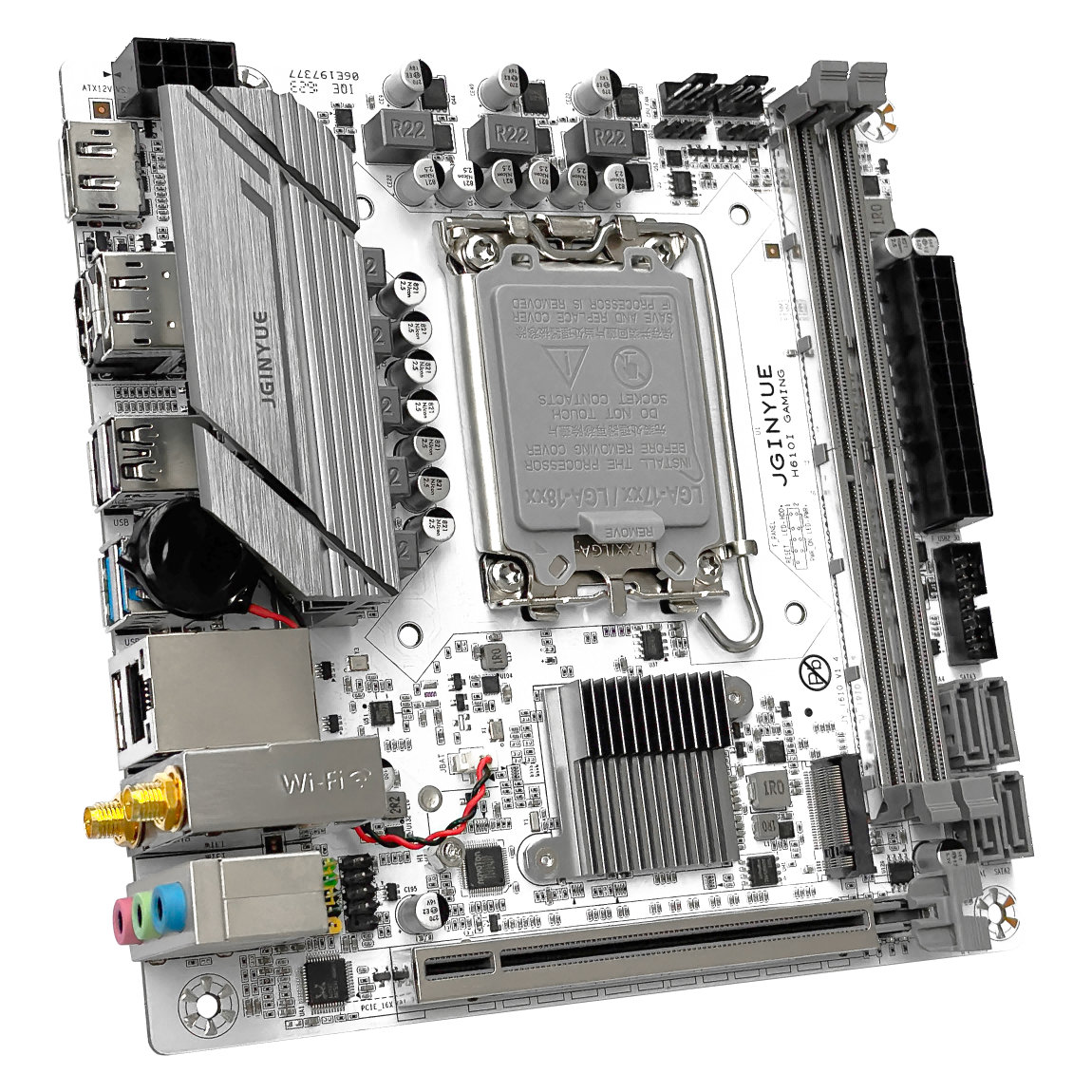

mainboard/ INTEL Series/ Intel LGA1700/ JGINYUE H610I GAMING motherboard V1.4 version
JGINYUE H610I GAMING motherboard V1.4 version
Supports Intel's 12th and 13th generation LGA1700 platform processors
Supports dual channel with 2 DDR4 slots 2133 to 3200MHz frequencies (supports XMP/actual situation may vary depending on CPU and memory constitution), with a maximum support of 64GB
8-phase power supply

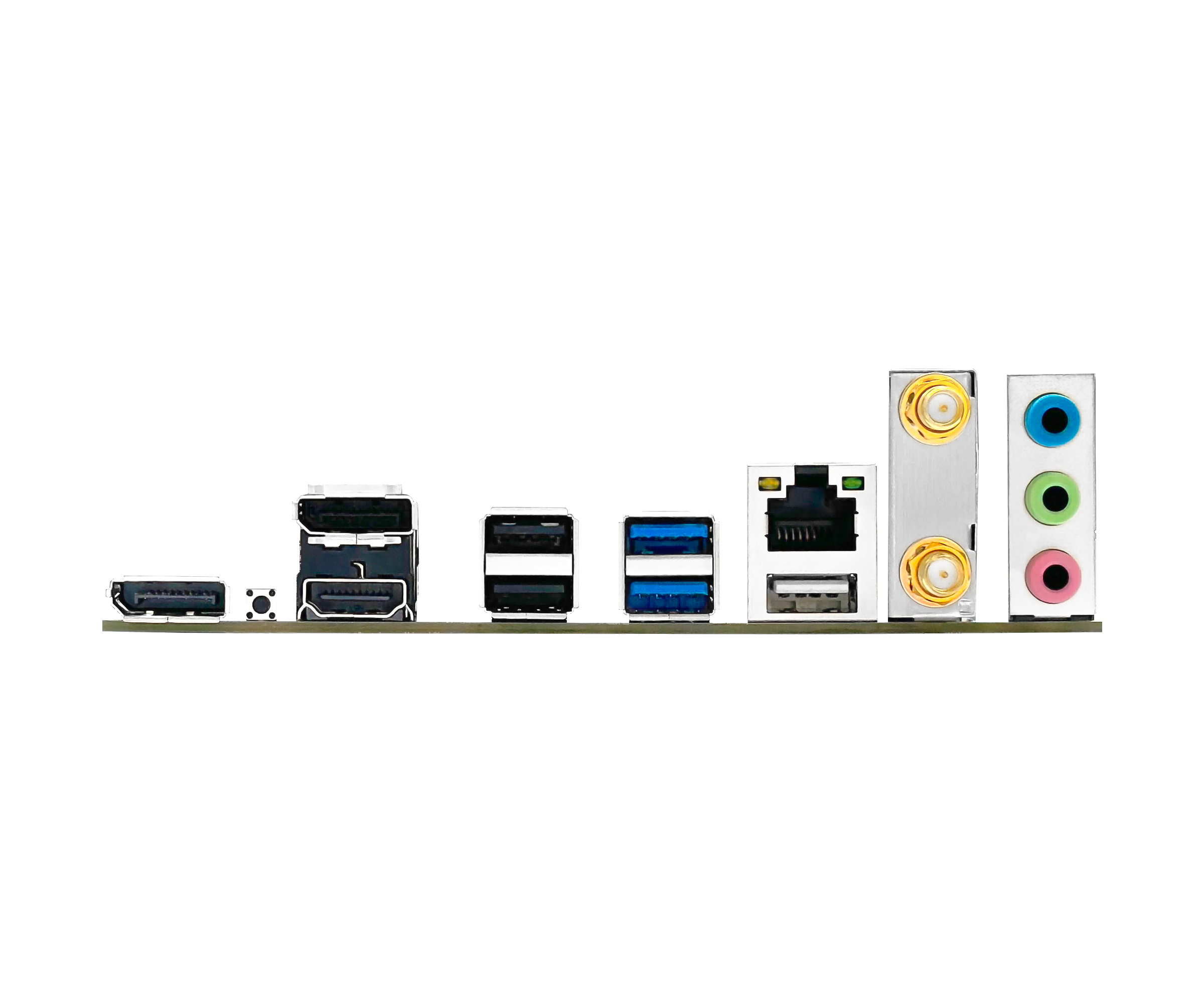

3 USB 2.0 and 2 USB 3.2 in the rear; Front 1 USB 2.0 and 1 USB 3.2
1 PCIExpress X16 4.0 slot
1 Gigabit network card interface; 2 DP interfaces; 1 HDMI interface
2 M.2 NVME protocol interfaces (1 PCle 3.0 x4, 1 PCle 3.0 x2)
1 WiFi interface; Compatible with PCIE and CNVI protocols
1 one click Clear BIOS button
Two 5V3 pin RGB pins; Two 4-pin fan interfaces
product price
  • Details Introduction
  • specification parameter
  • download
  • Motherboard model
  • H610I GAMING V1.4
  • Chipset
  • Intel H610
  • CPU pins
  • Supports Intel's 12th and 13th generation LGA1700 platform processors
  • Memory slot
  • 2 DDR4 memory slots
  • Memory capacity
  • Maximum support for 64G
  • Memory standard
  • Supports dual channel DDR4 frequencies of 3200/3000/2933/2800/2666/2400/2133MHz (supports XMP technology/actual situation may vary depending on different CPU and memory configurations)
  • Display interface
  • 1 HDMI interface; 2 DP interfaces
  • Storage interface
  • 4 SATA3.0 6Gbps interfaces; Two M.2 nvme protocol interfaces (one PCle 3.0 x4 on the front and one PCle 3.0 x2 on the back)
  • USB interface
  • 3 USB 2.0 and 2 USB 3.2 in the rear; Front 1 USB 2.0 and 1 USB 3.2
  • Expansion Slots
  • 1 PCI Express 4.0 x16 slot
  • Wireless interface
  • 1 WiFi interface (compatible with PCIe protocol/CNVI protocol)
  • Onboard sound card
  • Realtek ALC897
  • Onboard network card
  • Realtek 8111 Gigabit Network Card Interface
  • Power supply socket
  • 24pin+8pin
  • Fan pin
  • Two 4-pin needles
  • Number of power supply phases
  • 8-phase power supply
  • RGB pin
  • Two 5v3 pin RGB interfaces
  • Size specifications
  • 17x17cm ITX version
  • support system
  • Windows 10 Windows 11
  • Other interfaces
  • 1 one click clear bios button; DEBUG diagnostic light
Alsa
Software Download
BIOS
instruction book
    • FileVersion System Updated Date brief introduction download
    H610I GAMING mainboard DTT driver v1.4 win10,win11 64 bits 2024-05-07 DTT driven
    H610I GAMING Motherboard v1.4 Chipset drivers win10,win11 64 bits 2024-05-07 Chipset driver
    H610I GAMING motherboard v1.4 SerialIO Drivers win10,win11 64 bits 2024-05-07 SerialIO driver
    H610I GAMING motherboard v1.4 version GNA Drivers win10,win11 64 bits 2024-05-07 GNA driver
    H610I GAMING motherboard v1.4 supervisor driver win10,win11 64 bits 2024-05-07 Supervisor driven
    H610I GAMING motherboard v1.4 audio driver win10,win11 64 bits 2024-05-07 audio driver
    H610I GAMING motherboard v1.4 NIC driver win10,win11 64 bits 2024-05-07 Network Driver
    • FileVersion System Updated Date brief introduction download
    H610I GAMING Motherboard v1.4 version RGB desktop control software win10,win11 64 bits 2024-05-07 RGB desktop control software
    H610I GAMING Motherboard v1.4 version RGB desktop control software win10,win11 64 bits 2024-05-07 RGB desktop control software
    • FileVersion System Updated Date brief introduction download
    H610I GAMING V1.4 (JYH61A0P)(104) 2025-03-28 Update and fix the bug that occurs when using 50 series or 9000 series graphics cards (104 microcode version)
    H610I GAMING V1.4 (JYH61A0P)(12B) 2025-03-28 Update and fix the bug that occurs when using 50 series or 9000 series graphics cards (0X12B microcode version)
    H610I GAMING V1.4 (JYH61A0O)(104) win10&win11 2025-01-07 Fixed the bug that when the BIOS was switched to English, the language of the top menu bar would not change (104 the microcode version)
    H610I GAMING V1.4 (JYH61A0O)(12B) win10&win11 2025-01-07 Fixed the bug that when the BIOS was switched to English, the language of the top menu bar would not change (0x12B the microcode version)
    H610I GAMING V1.4 Motherboard BIOS win10,win11 64位 2024-05-28 Added ACDC setting options
    H610I GAMING Motherboard v1.4 version BIOS file win10,win11 64 bits 2024-04-20 Update and optimize cpu microcode, add DTT, ODT, VDDQ,TX function options
    H610I GAMING Motherboard v1.4 version BIOS file win10,win11 64 bits 2023-12-21 Update supports 14 generations
    H610I GAMING Motherboard v1.4 version BIOS file win10,win11 64 bits 2023-07-18 Latest mass production bios, fix hard disk 4k rate anomalies
    H610I GAMING Motherboard v1.4 version BIOS file win10,win11 64 bits 2023-05-10 1.4 mass production bios
    FileVersion System Updated Date brief introduction download
