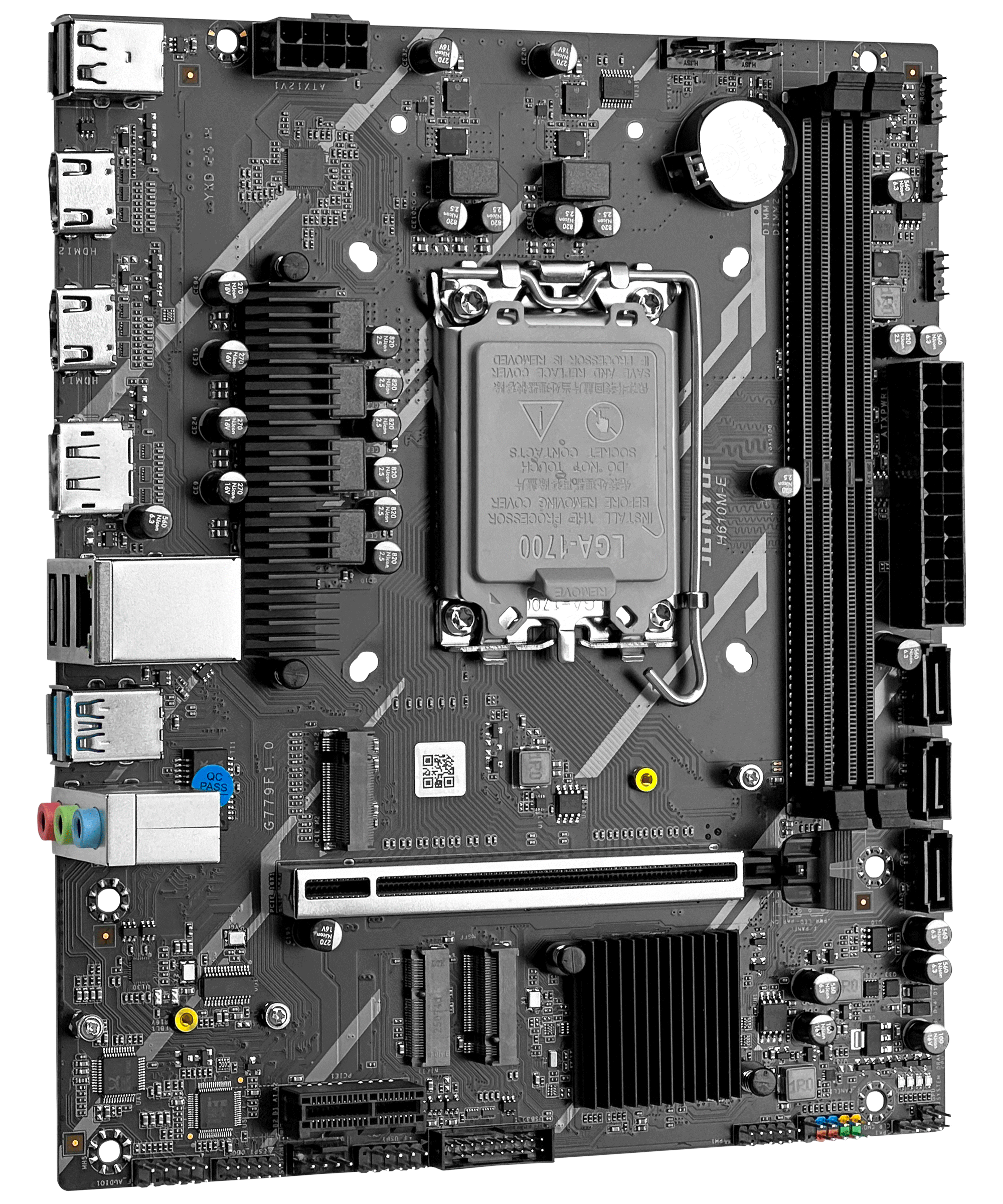

JGINYUE H610M-E motherboard
Supports Intel 12th, 13th, and 14th generations LGA1700 platform processors
Supports dual channel 2xDDR4 slots with frequencies ranging from 2133 to 3200MHz (XMP support may vary depending on different CPU and memory configurations), with a maximum capacity of 64GB
Rear 4xUSB2.0 2xUSB3.2; Front pin 1xUSB2.0 1xUSB3.2
1xPCIe X16 4.0 slot; 1 xCIExpress X1 slot
1x Gigabit Ethernet interface; 2xHDMI interface; 1xDP interface
2xM.2 NVME Protocol 3.0 Interface
1xWiFi interface supports CNVI protocol
3xARGB5V 3-pin pins (MCU control chip)
3x4-pin fan pins
1xSPK1 buzzer pin
  • Details Introduction
  • specification parameter
  • download
  • Motherboard model
  • H610M-E
  • chipset
  • intel H610
  • CPU pins
  • Supports Intel's 12th, 13th, and 14th generations LGA1700 platform processors
  • Memory slot
  • 2xDDR4 memory slots
  • Memory capacity
  • Maximum support for 64G
  • Memory standard
  • Supports dual channel DDR4 3200/3000/2933/2800/2666/2400/2133MHz frequency (supports XMP technology/actual situation may vary depending on different CPU and memory configurations)
  • display interface
  • 2xHDMI interface, 1xDP interface
  • storage interface
  • 3xSATA3.0 6Gbps interface; 2xM.2 nvme protocol 3.0 interface (1 X4/1 X2 rate)
  • USB interface
  • Rear 2xUSB3.2, 4xUSB2.0; The front 1xUSB3.2 pin can be connected to 2 additional external USB3.2 Gen1 interfaces, and the 1xUSB2.0 pin can be connected to 2 additional external USB2.0 interfaces
  • Expansion Slots
  • 1xPCI Express x16 4.0 slot; 1xPCI Express x1
  • Wireless interface
  • 1xWiFi interface supports CNVI protocol
  • Onboard sound card
  • Realtek ALC897
  • Onboard network card
  • Realtek 8111H
  • Power socket
  • 24Pin+8Pin
  • Fan pin
  • 3x4 needles
  • Number of power supply phases
  • 6-phase power supply
  • ARGB pin
  • 3x5v3 ARGB pins (MCU control chip)
  • Motherboard size
  • 21.5cmx18cm； M-ATX
  • supportive system
  • Windows10； Windows11
  • Other interfaces
  • 1xSPK1 buzzer pin, TPM2.0 pin
Alsa
Software Download
BIOS
instruction book
    • FileVersion System Updated Date brief introduction download
    Realtek_Audio_Winx64_6_0_9183_1 win10,win11 64 bits 2024-05-09 audio driver
    Realtek_Install_Win10_10051 win10,win11 64 bits 2024-05-09 Network Driver
    • FileVersion System Updated Date brief introduction download
    OpenRGB-MCU-20240913 win10&win11 2024-09-16 RGB desktop control software
    • FileVersion System Updated Date brief introduction download
    H610M-E (G779) 2025-05-20 First BIOS
    FileVersion System Updated Date brief introduction download
