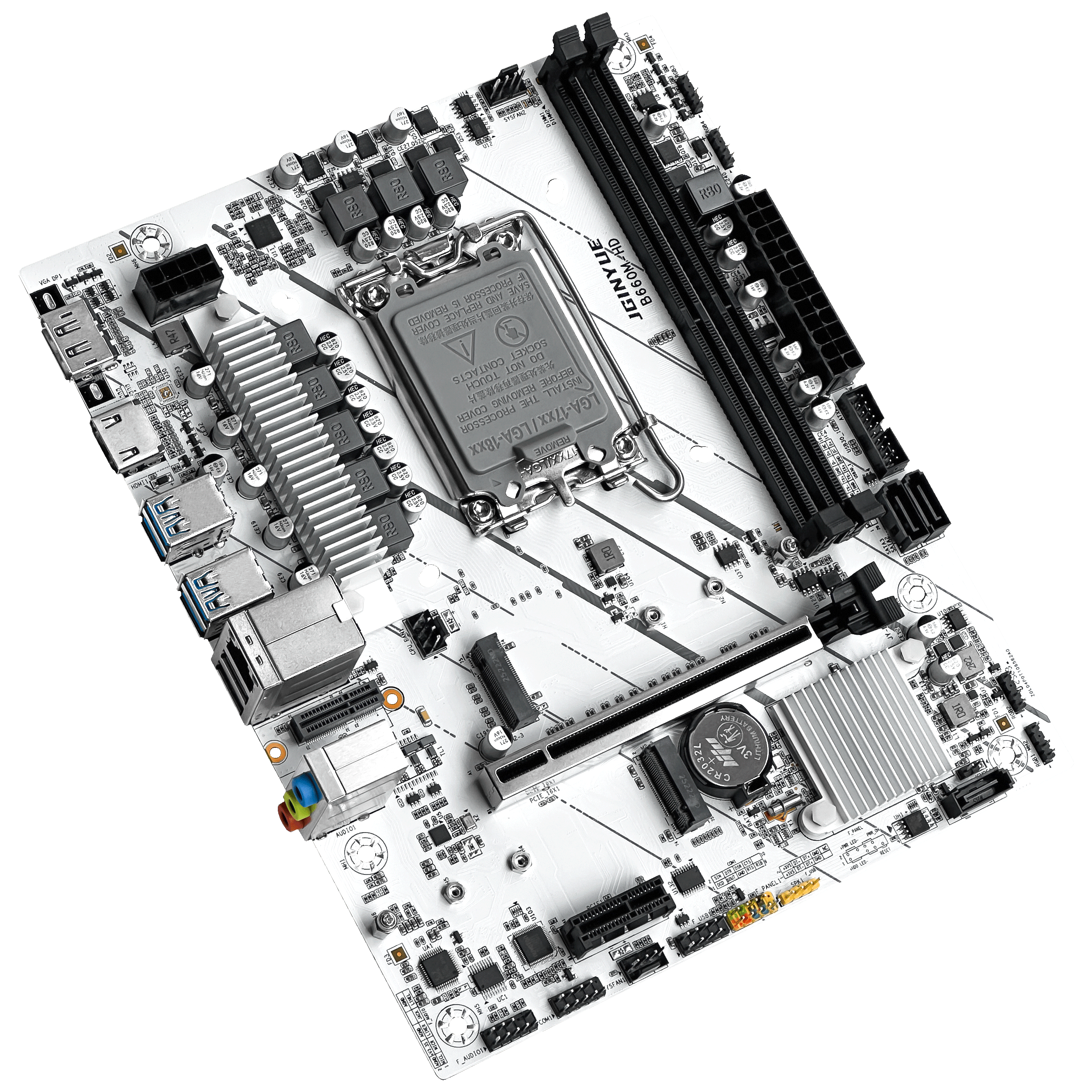

Motherboard model
-
B660M-HD
-
chipset
-
Intel B660
-
CPU pins
-
Supports Intel 12th, 13th, and 14th generation platform processors
-
Memory slot
-
2xDDR4 memory slots
-
Memory capacity
-
Maximum capacity supports 64G
-
Memory standard
-
Supports dual channel DDR4, G1 mode 2133-4200MHz (supports XMP technology/actual situation may vary depending on different CPU and memory configurations), G2 mode 2133-4800MHz (supports XMP technology/actual situation may vary depending on different CPU and memory configurations)
-
display interface
-
1xHDMI interface, 1xDP interface
-
Storage interface
-
3xSATA3.0 6Gbps interface; 2xM.2 NVME protocol (one 4.0, one 3.0)
-
USB interface
-

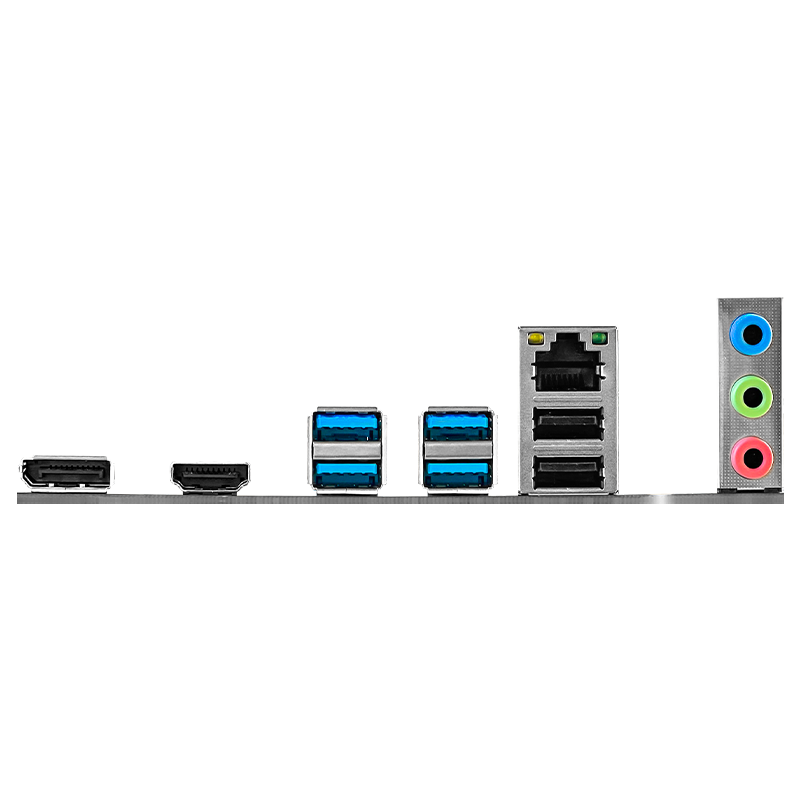

Rear 4xUSB3.2, 2xUSB2.0; Front mounted 1xUSB3.0 pin, capable of connecting 2 additional external USB3.2 Gen1 interfaces; 1xUSB 2.0 pin, capable of connecting 2 additional external USB 2.0 interfaces
-
Expansion Slots
-
1xPCI Express x16 slot 4.0; 1xPCI Express x1 slot 3.0
-
Wireless interface
-
1xWiFi interface (compatible with PCIe/CNVI protocol)
-
Fan pin
-
3x4-pin fan pins
-
Onboard sound card
-
Realtek ALC897
-
Onboard network card
-
Realtek 8111H
-
Power socket
-
1x24Pin motherboard power supply; 1x8Pin processor power supply
-
Number of power supply phases
-
8-phase power supply
-
ARGB pin
-
4x5v3 pin ARGB (MCU independent control chip)
-
Specification
-
22cmx18cm； M-ATX
-
supportive system
-
Windows10； Windows11
-
Other interfaces
-
1xSPK1 buzzer pin, 1x front COM pin
Alsa
Software Download
BIOS
instruction book
| FileVersion | System | Updated Date | brief introduction | download |
|---|---|---|---|---|
| Realtek_Install_Win10_10051 | win10,win11 64 bits | 2024-05-09 | Network Driver |
|
| Realtek_Audio_Winx64 | win10,win11 64 bits | 2024-05-09 | audio driver |
|
| FileVersion | System | Updated Date | brief introduction | download |
|---|---|---|---|---|
| OpenRGB-MCU-20240913 | win10&win11 | 2024-09-16 | RGB desktop control software |
|
