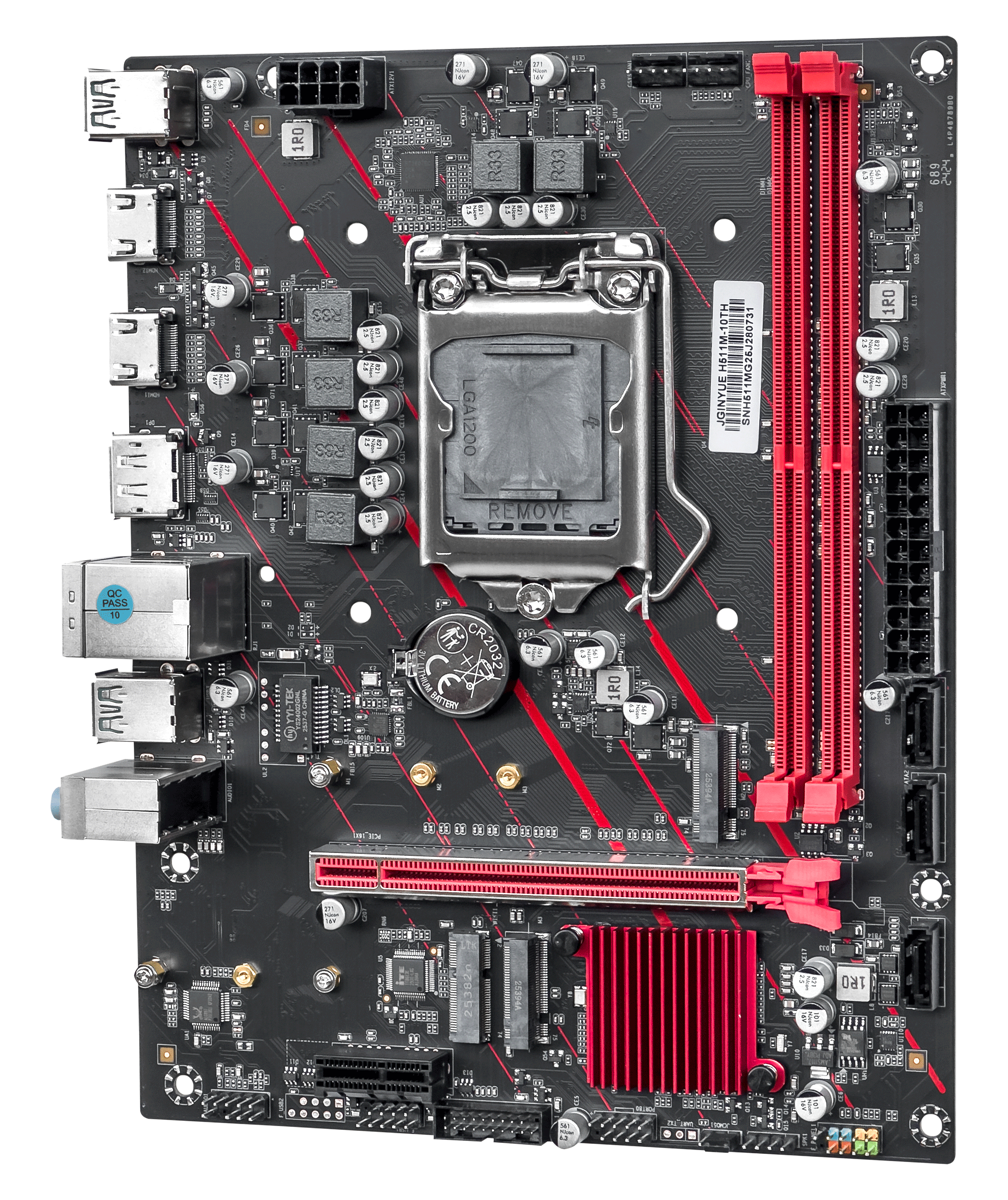

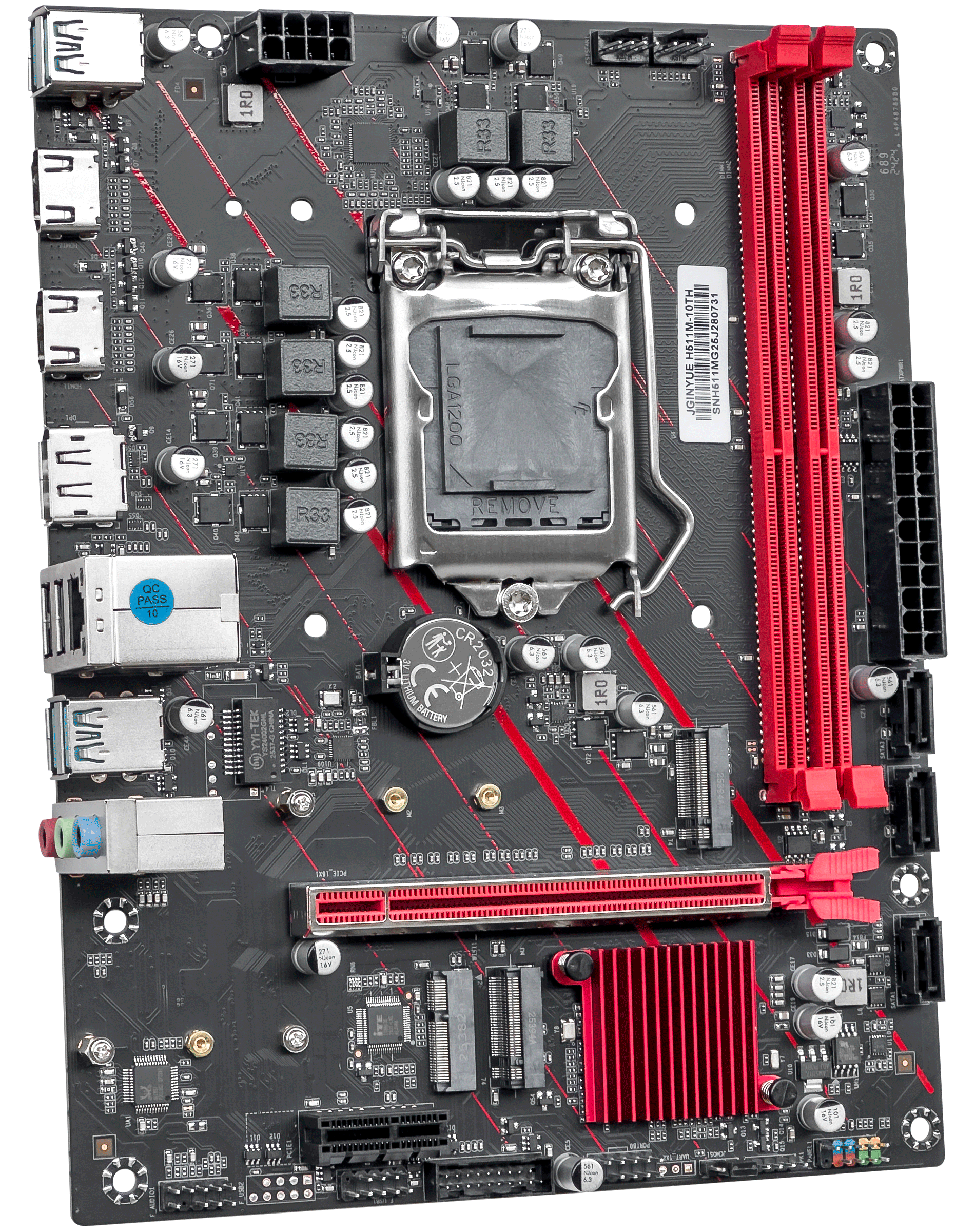

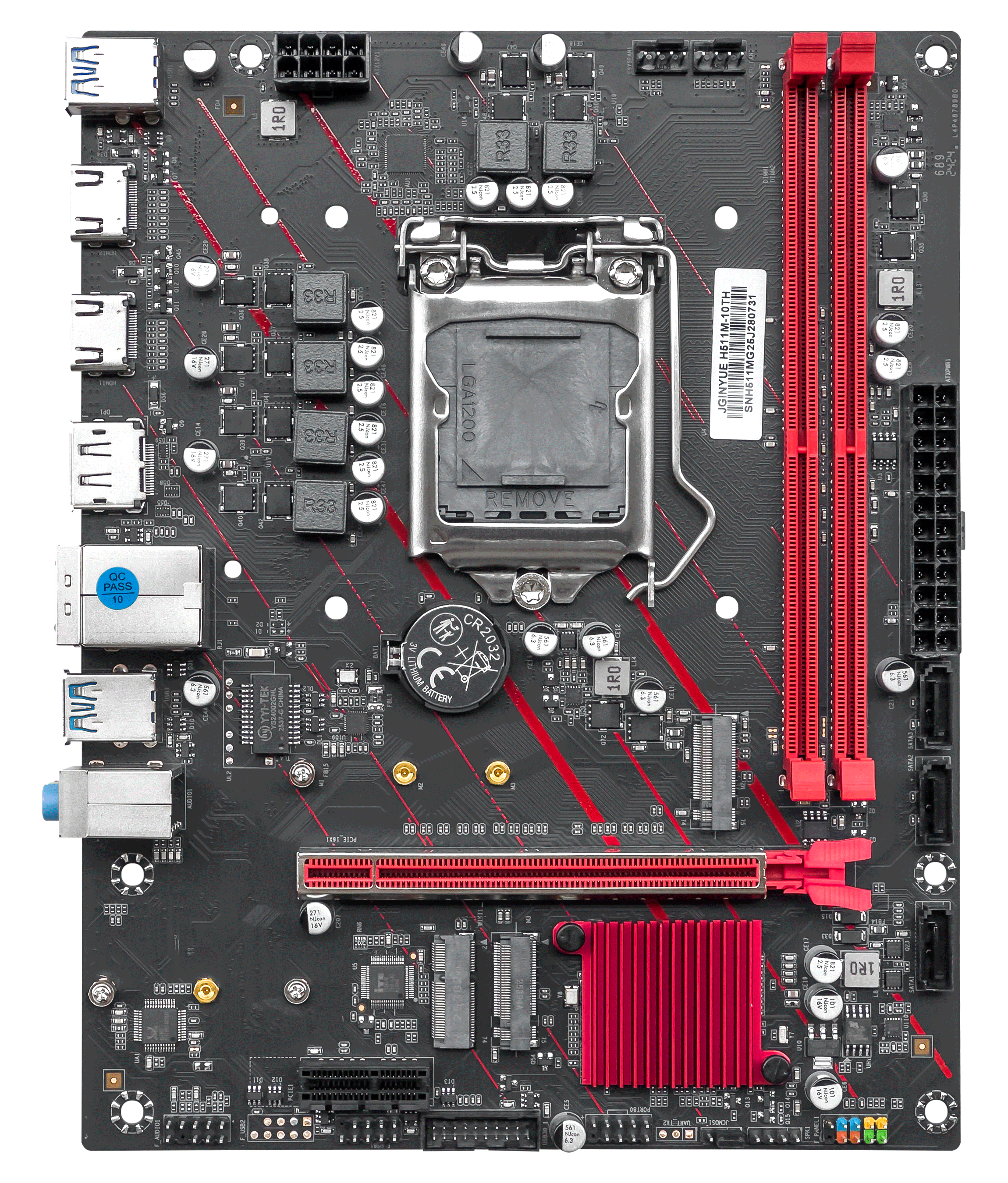

JGINYUE H511M-10TH motherboard
Supports Intel LGA1200 pin (10th generation processor)
Supports dual channel 2xDDR4 memory slots with a maximum support of 64GB
Memory frequency supports 2133/2400MHz
Video interface: 2xHDMI, 1xDP
Storage interface: 1xM.2 NVME protocol 3.0, 1xM.2 SATA protocol 3.0, 3xSATA3.0 interface

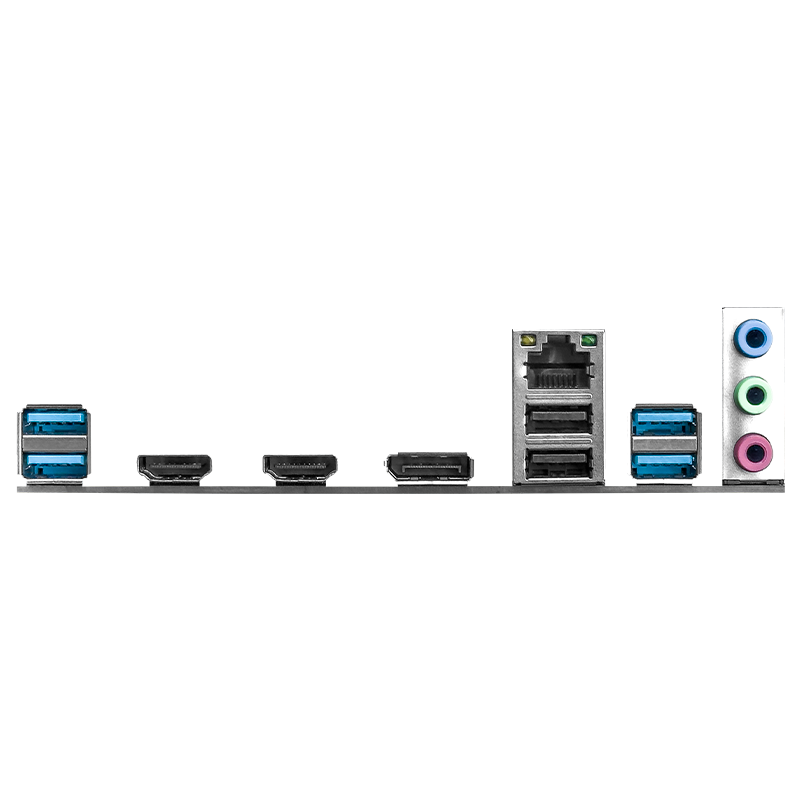

Rear 4xUSB 3.0, 2xUSB 2.0; Front mounted 1xUSB2.0 pin, 1xUSB3.0 pin
1xPCI Express x16 slot, 1xPCI Express x1 slot
  • Details Introduction
  • specification parameter
  • download
  • Motherboard model
  • H511M-10TH
  • CPU pins
  • Supports Intel LGA1200 10th generation processor
  • Memory slot
  • 2xDDR4 memory slots
  • Memory capacity
  • Maximum support for 64G
  • Memory standard
  • Supports dual channel DDR4 2133/2400MHz
  • Video interface
  • 2xHDMI，1xDP
  • Storage interface
  • 1xM.2 NVME protocol 3.0, 1xM.2 SATA protocol 3.0, 3xSATA3.0 interface
  • USB port
  • Rear 4xUSB 3.0, 2xUSB 2.0 interfaces; Front mounted 1xUSB3.0 pin header, 1xUSB2.0 interface pin header
  • Expansion Slots
  • 1xPCI Express x16 slot, 1xPCI Express x1 slot
  • Onboard network card
  • Realtek 8111H Gigabit Ethernet Card
  • Onboard sound card
  • Realtek ALC897
  • Fan pin
  • 2x4 needles
  • Number of power supply phases
  • 6-phase power supply
  • Dimensions
  • 21.5x17cm M-ATX
  • Other interfaces
  • SPK1 buzzer pin
Alsa
Software Download
BIOS
instruction book
    • FileVersion System Updated Date brief introduction download
    Realtek_Audio_Winx64_6_0_9183_1 win10,win11 64 bits 2024-05-09 audio driver
    Realtek_Install_Win10_10051 win10,win11 64 bits 2024-05-09 Network Driver
