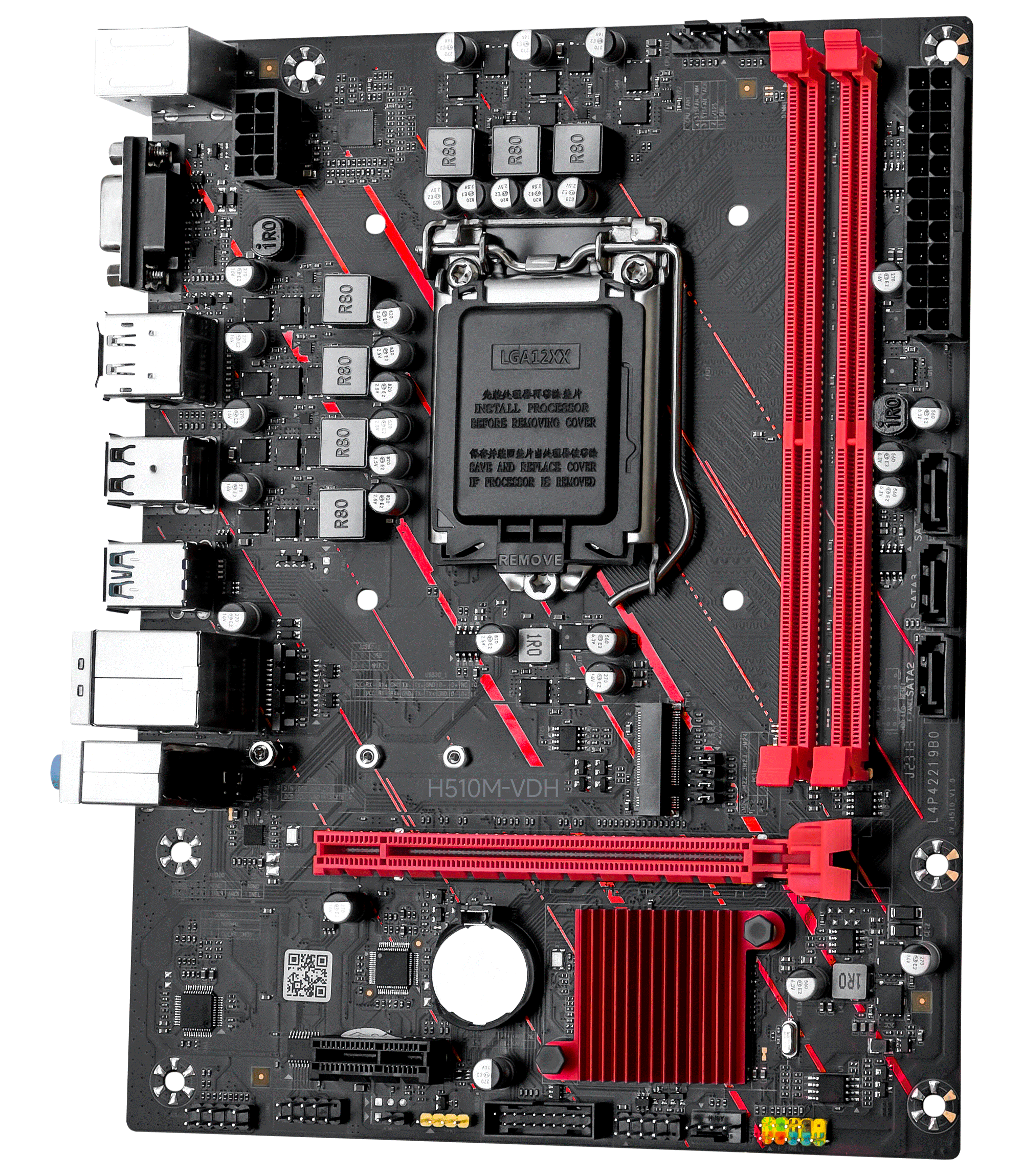

JGINYUE H510M-VDH motherboard
Supports Intel LGA1200 pin (10th and 11th generation processors)
Supports dual channel 2 x DDR4 memory slots with a maximum support of 64GB
Memory frequency supports 2133/2400MHz
Video interface: 1 x HDMI, 1 x DP, 1 x VGA
Storage interface: 1 x M.2 NVMe/SATA protocol, 3 x SATA3.0 interface
Rear 2 x USB 3.0, 4 x USB 2.0; Front mounted 1 x USB 2.0 pin, 1 x USB 3.0 pin
1 x PCI Express x16 slot, 1 x PCI Express x1 slot
  • Details Introduction
  • specification parameter
  • download
  • Motherboard model
  • H510M-VDH
  • CPU pins
  • Supports Intel LGA1200 (10th and 11th generation processors)
  • Memory slot
  • 2 x DDR4 memory slots
  • Memory capacity
  • Maximum support for 64G
  • Memory standard
  • Supports dual channel DDR4 2133/2400MHz
  • video interface
  • 1×HDMI，1×DP，1×VGA
  • Storage interface
  • 1 x M.2 NVMe/SATA protocol, 3 x SATA3.0 interfaces
  • USB port
  • Rear 2 x USB 3.0, 4 x USB 2.0 interfaces; Front mounted 1 x USB 3.0 pin header, 1 x USB 2.0 interface pin header
  • expansion slot
  • 1 x PCI Express x16 slot, 1 x PCI Express x1 slot
  • Onboard network card
  • Realtek 8111 Gigabit Ethernet Card
  • Onboard sound card
  • Realtek ALC897
  • Fan pin
  • 3 x 4 needles
  • Number of power supply phases
  • 7-phase power supply
  • Dimensions
  • 22x17cm M-ATX
  • other interfaces
  • SPK1 buzzer pin, PS/2 key mouse
Alsa
Software Download
BIOS
instruction book
    • FileVersion System Updated Date brief introduction download
    Realtek_Audio_Winx64_6_0_9183_1 win10,win11 64 bits 2024-05-09 audio driver
    Realtek_Install_Win10_10051 win10,win11 64 bits 2024-05-09 Network Driver
