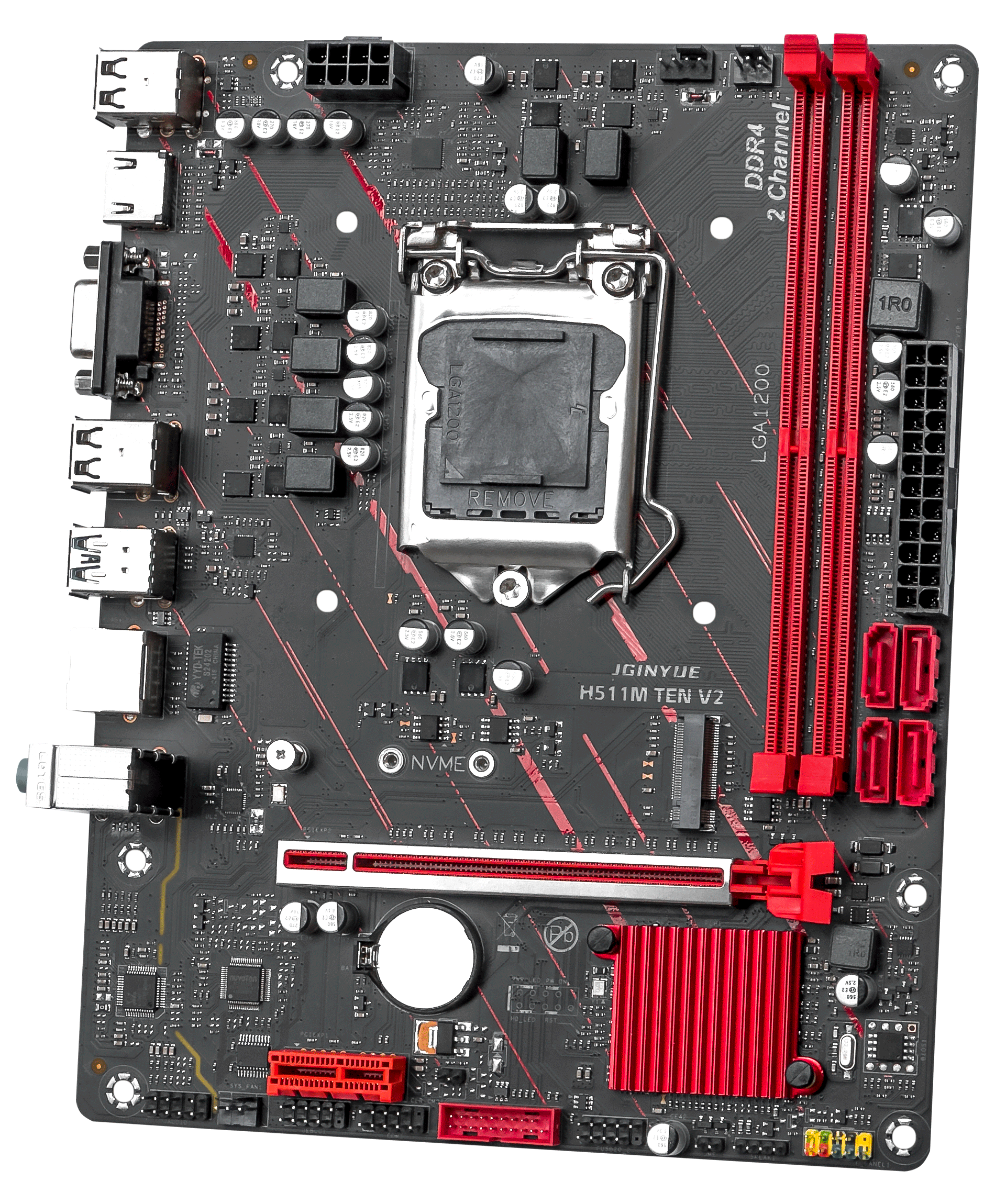

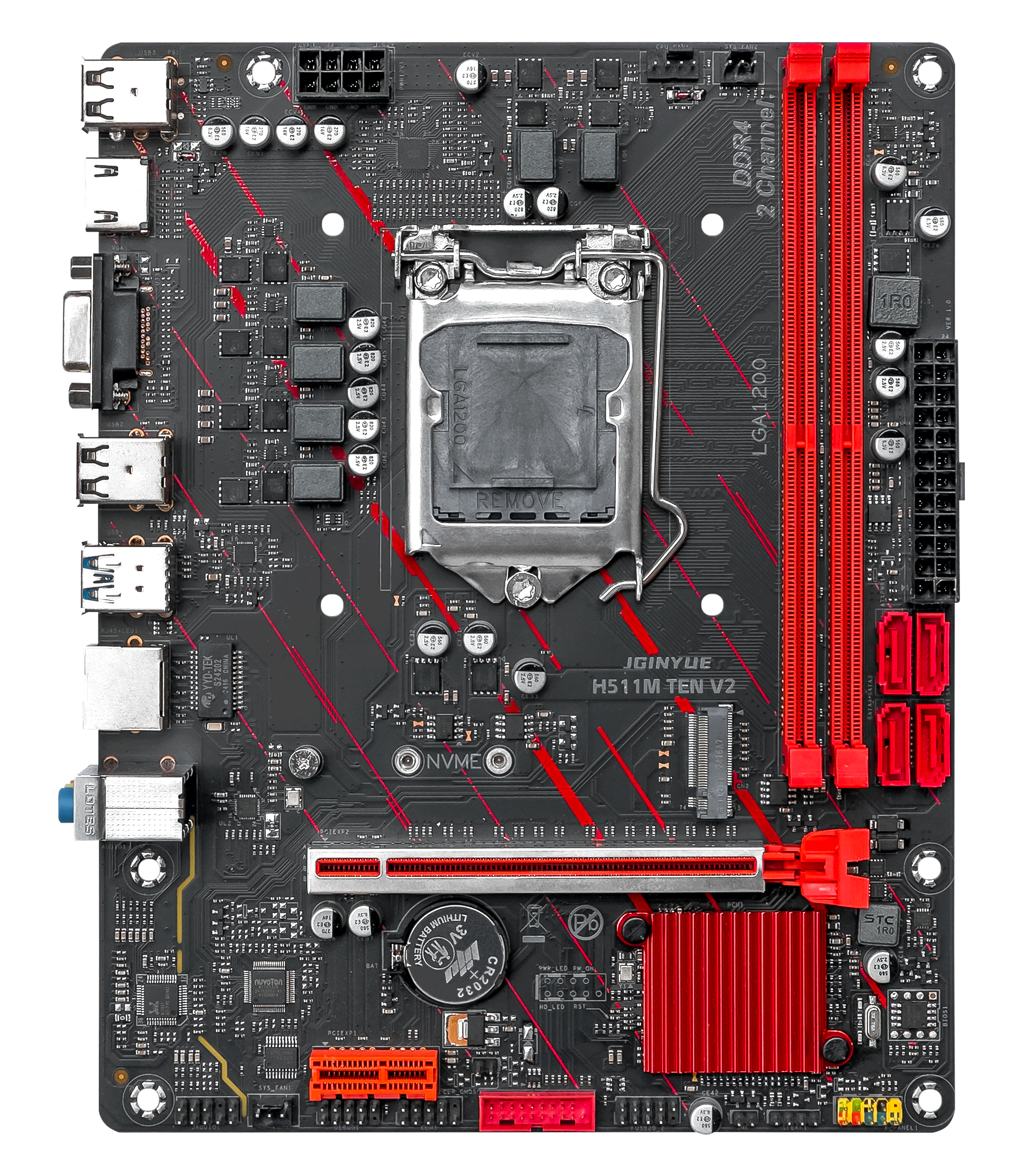

JGINYUE H511M-TEN V2 motherboard
Supports Intel LGA1200 10th generation processors
2×DDR4 dual-channel 2400MHz
1×HDMI, 1×VGA
1×M.2 NVME protocol, 4×SATA3.0 interfaces
  • Details Introduction
  • specification parameter
  • download
  • Motherboard Model
  • H511M-TEN V2
  • CPU Socket
  • Supports Intel LGA1200 10th Generation Processors
  • Memory Slots
  • 2×DDR4 Dual Channel
  • Memory Capacity
  • Maximum support for 32G
  • Memory Standard
  • Supports dual-channel DDR4 2133~2400MHz
  • Video Interfaces
  • 1×HDMI, 1×VGA
  • Storage Interfaces
  • 1×M.2 NVME protocol, 4×SATA3.0 interfaces

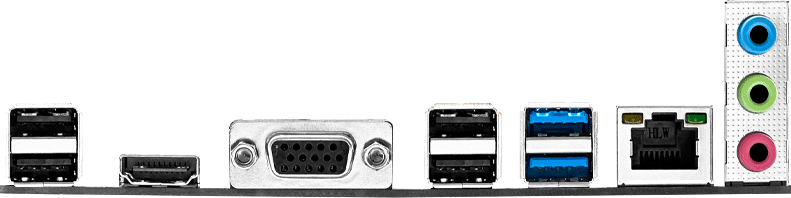

  • USB Interfaces
  • Rear: 2×USB3.0, 4×USB2.0 interfaces; Front: 1×USB3.0, 1×USB2.0 interface
  • Expansion Slots
  • 1×PCI Express x16 slot, 1×PCI Express x1 slot
  • Onboard Network Card
  • Realtek 8111H Gigabit Network Card
  • Onboard Sound Card
  • Realtek ALC897
  • Fan Headers
  • 2×3-pin, 1×4-pin
  • Power Phases
  • 6-phase power supply
  • Dimension Specifications
  • 21.5x17cm M-ATX
  • Other Interfaces
  • SPEAK1 Buzzer Header
Alsa
Software Download
BIOS
instruction book
    • FileVersion System Updated Date brief introduction download
    Realtek_Audio_Winx64_6_0_9183_1 win10,win11 64 bits 2024-05-09 audio driver
    Realtek_Install_Win10_10051 win10,win11 64 bits 2024-05-09 Network Driver
