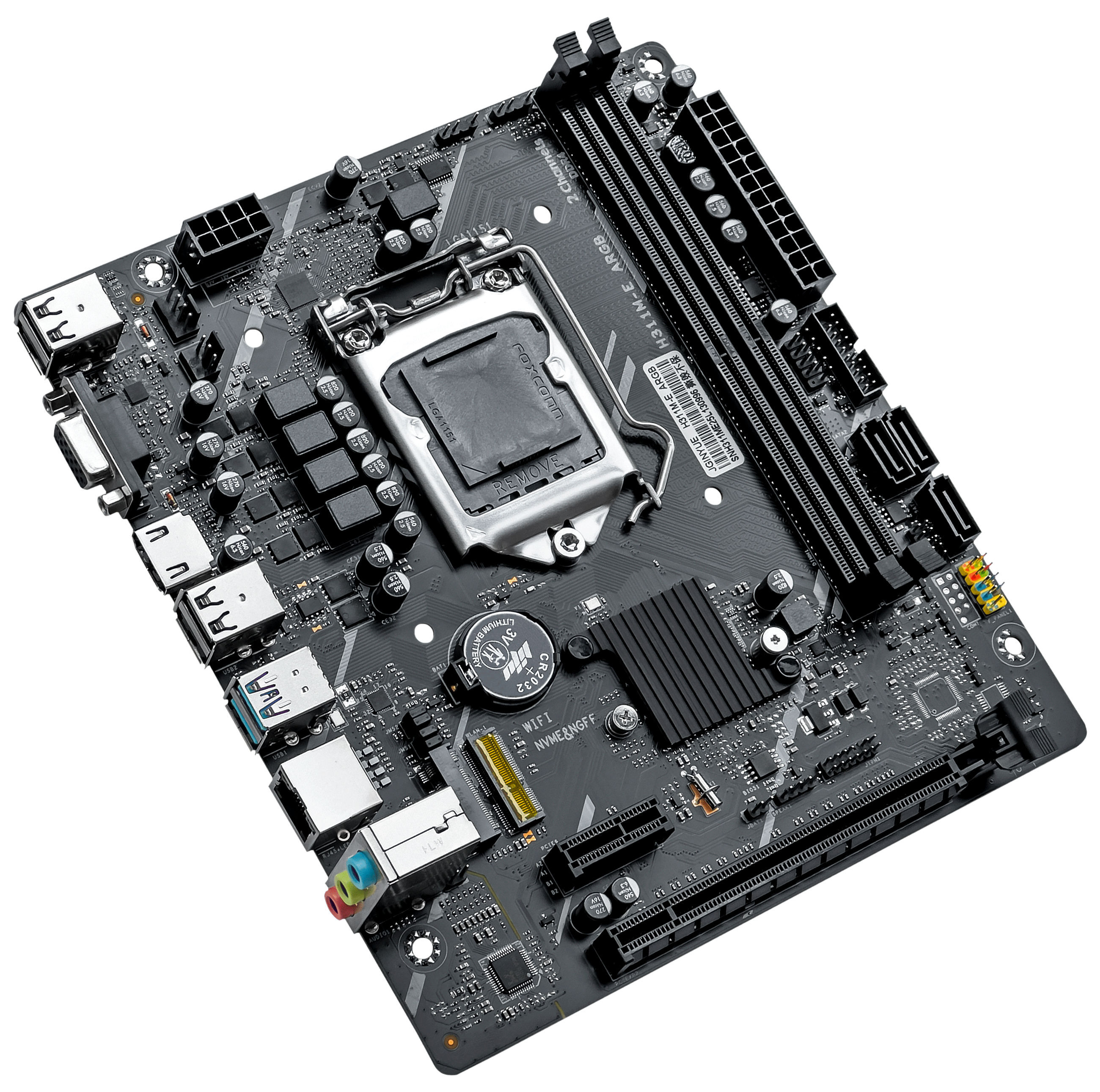

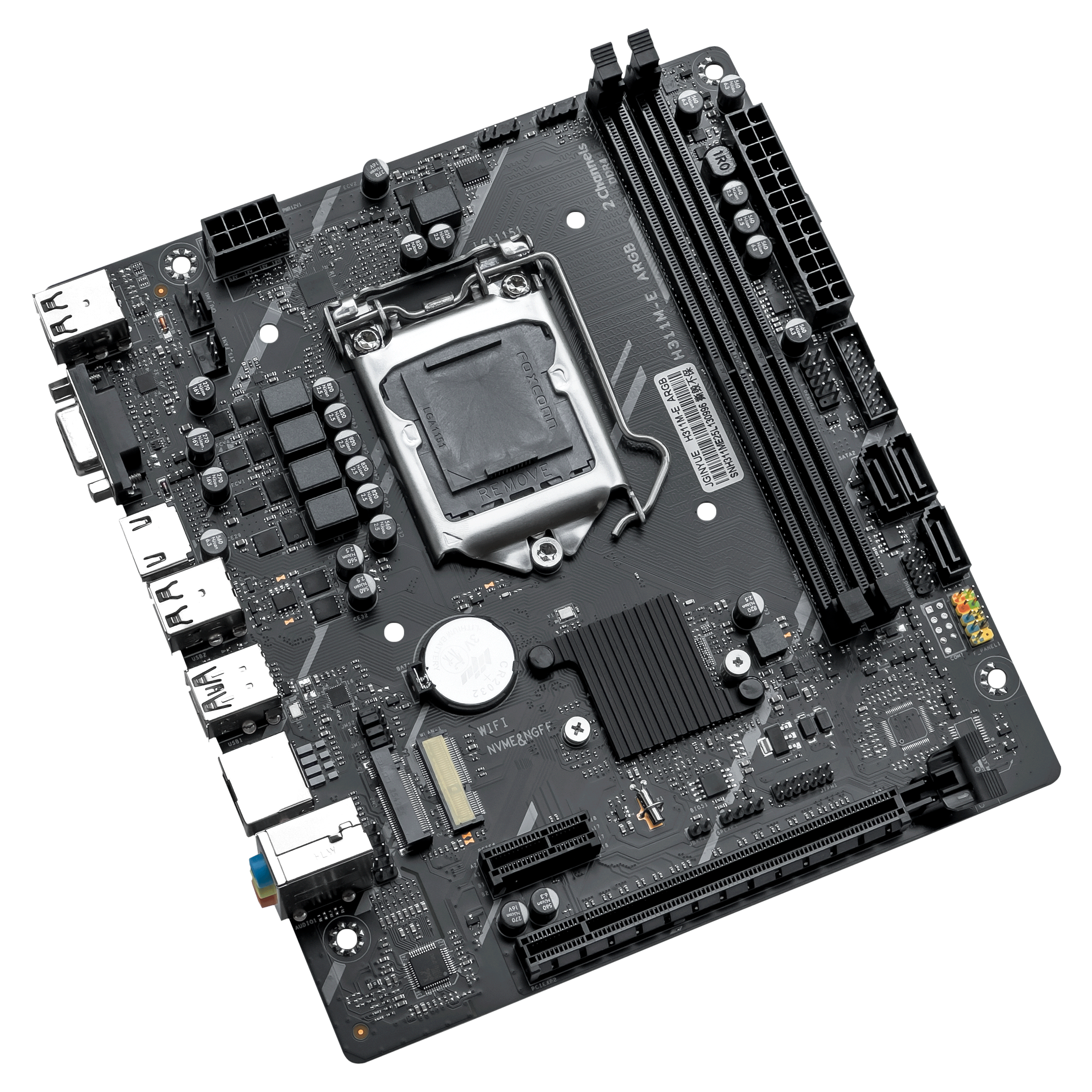

JGINYUE H311M-E ARGB motherboard
CPU slot: Intel LGA1151 supports 6th/7th/8th/9th generation series processors
Memory slot: 2 x DDR4, dual channel 2133/2400MHz/64G, single slot supports up to 32GB
Storage interfaces: 1 × M.2 NVMe/SATA protocol interface (skip switch protocol); 3 x SATA 3.0 interface
Display interface: 1 x HDMI interface; 1 x VGA interface
Network interface: 1 RJ45 interface Realtek 8111 Gigabit
Audio chip: Realtek ALC897 audio chip
Memory slot: 2 x DDR4, dual channel 2133/2400MHz/64G, single slot supports up to 32GB
Storage interfaces: 1 × M.2 NVMe/SATA protocol interface (skip switch protocol); 3 x SATA 3.0 interface
Display interface: 1 x HDMI interface; 1 x VGA interface
Network interface: 1 RJ45 interface Realtek 8111 Gigabit
Audio chip: Realtek ALC897 audio chip
- Details Introduction
- specification parameter
- download
-
motherboard model
-
H311M-E ARGB
-
Motherboard chip
-
Intel H311
-
CPU slot
-
Intel LGA1151 supports 6th/7th/8th/9th generation processors
-
Memory slot
-
2 x DDR4, dual channel 2133/2400MHz/64G, single slot supports up to 32GB
-
Store various interfaces
-
1 × M.2 NVME/SATA protocol interface (hop switch protocol); 3 x SATA 3.0 interface
-
display interface
-
1 x HDMI interface; 1 x VGA interface
-
network interface
-
1 x RJ45 interface Realtek 8111 Gigabit
-
Audio chip
-
Realtek ALC897 Audio Chip
-
USB port
-
Front end 4 x USB 2.0; 2×USB3.0 ; Front pin 1 x USB 2.0 pin (expandable to 2 x USB 2.0 ports); 1 x USB 3.0 pin (expandable to 2 x USB 3.0 ports)
-
power supply interface
-
1×24Pin 1×8Pin
-
Number of power supply phases
-
5 phases
-
WIFI interface
-
1 x WIFI PCIE protocol interface
-
expansion slot
-
1 x PCI Express x16 slot 3.0 1 x PCI Express x1 slot 3.0
-
Fan pin
-
1 × 4-pin pin 1 × 3-pin pin
-
ARGB pin
-
2 x ARGB 5V3 pins (MCU independent control chip)
-
Product dimensions
-
17cmx19cm,M-ATX
Alsa
Software Download
BIOS
instruction book
| FileVersion | System | Updated Date | brief introduction | download |
|---|---|---|---|---|
| OpenRGB-MCU-20240913 | win10&win11 | 2024-09-16 | RGB desktop control software |
|
