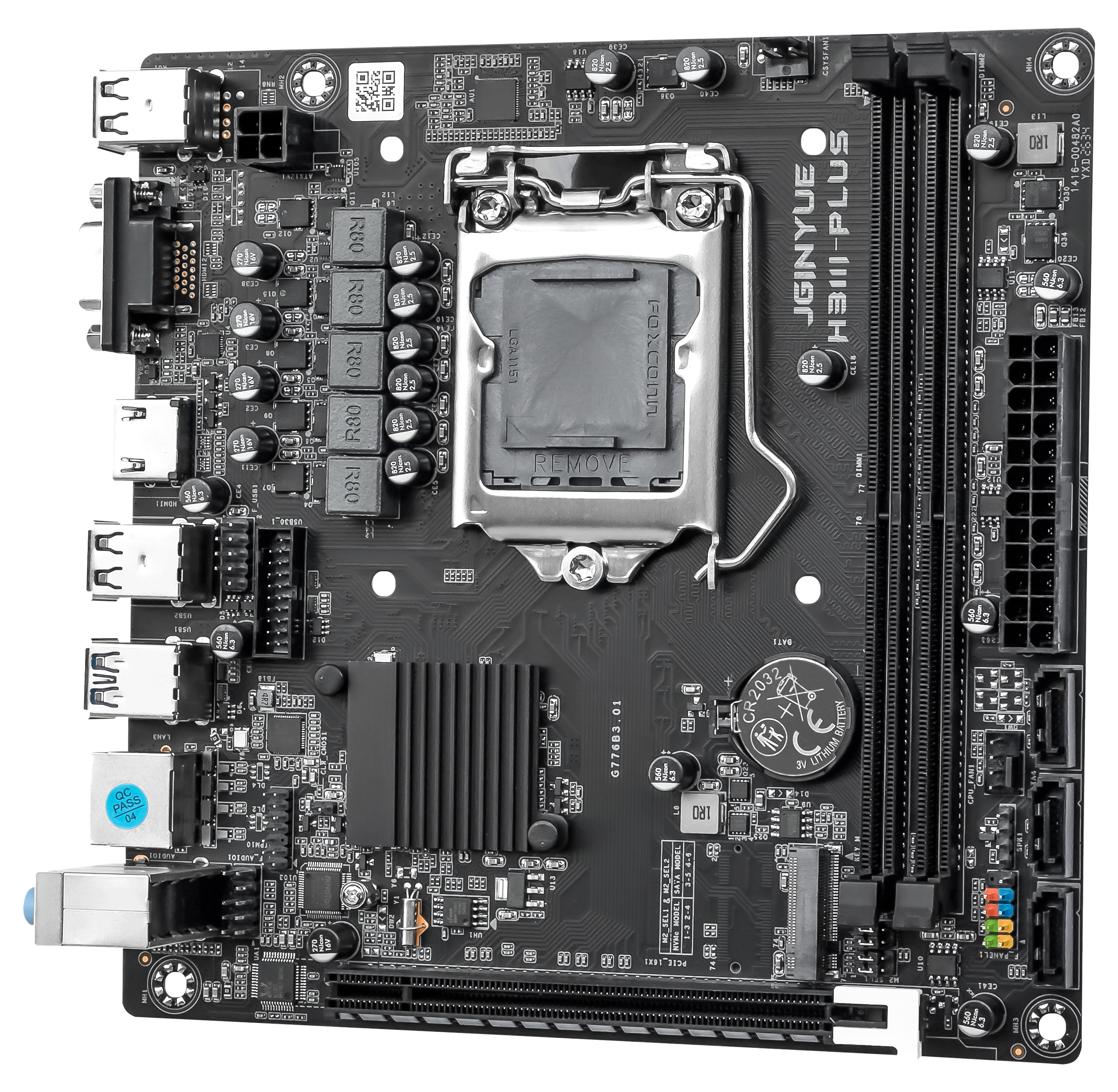

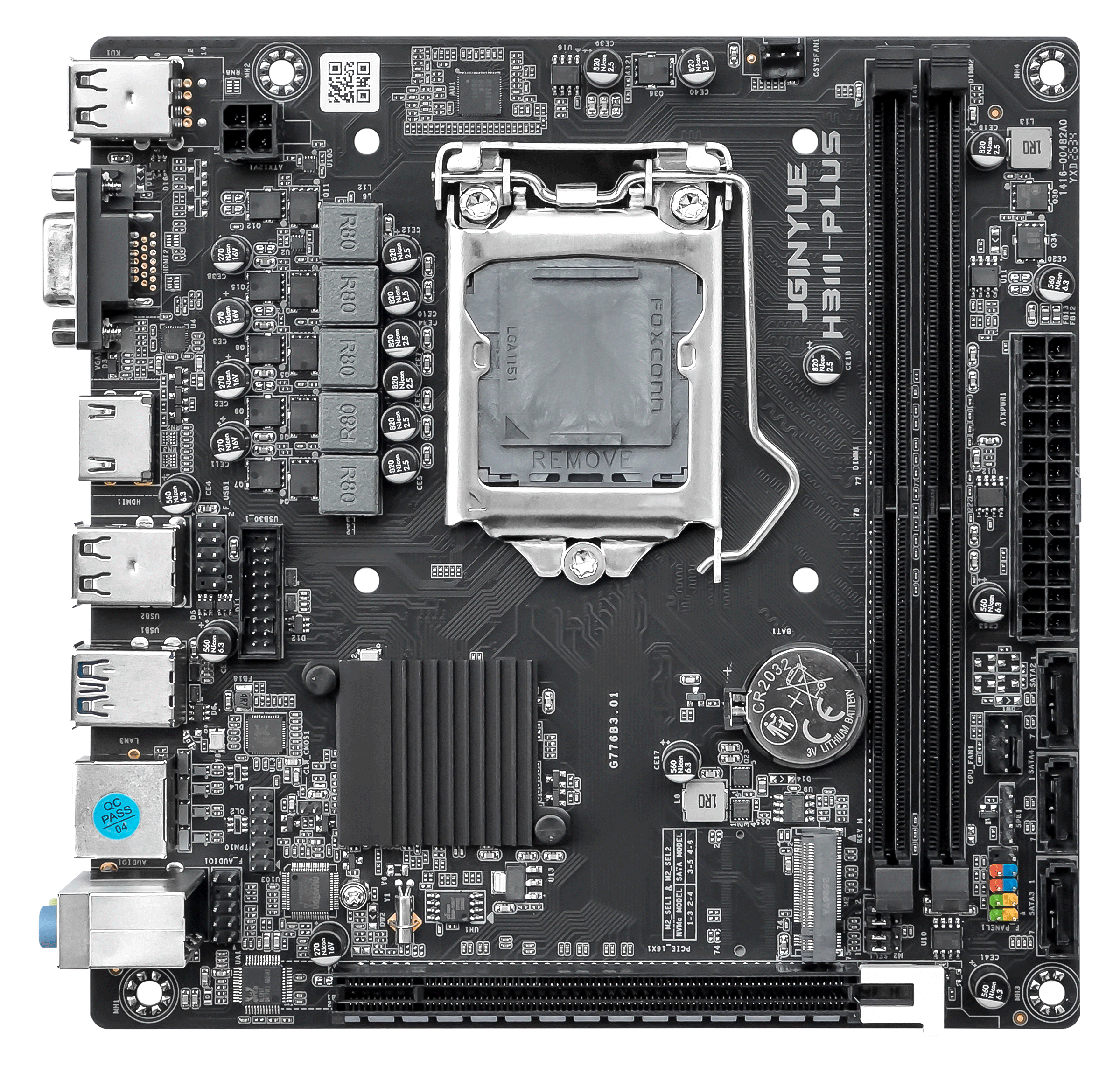

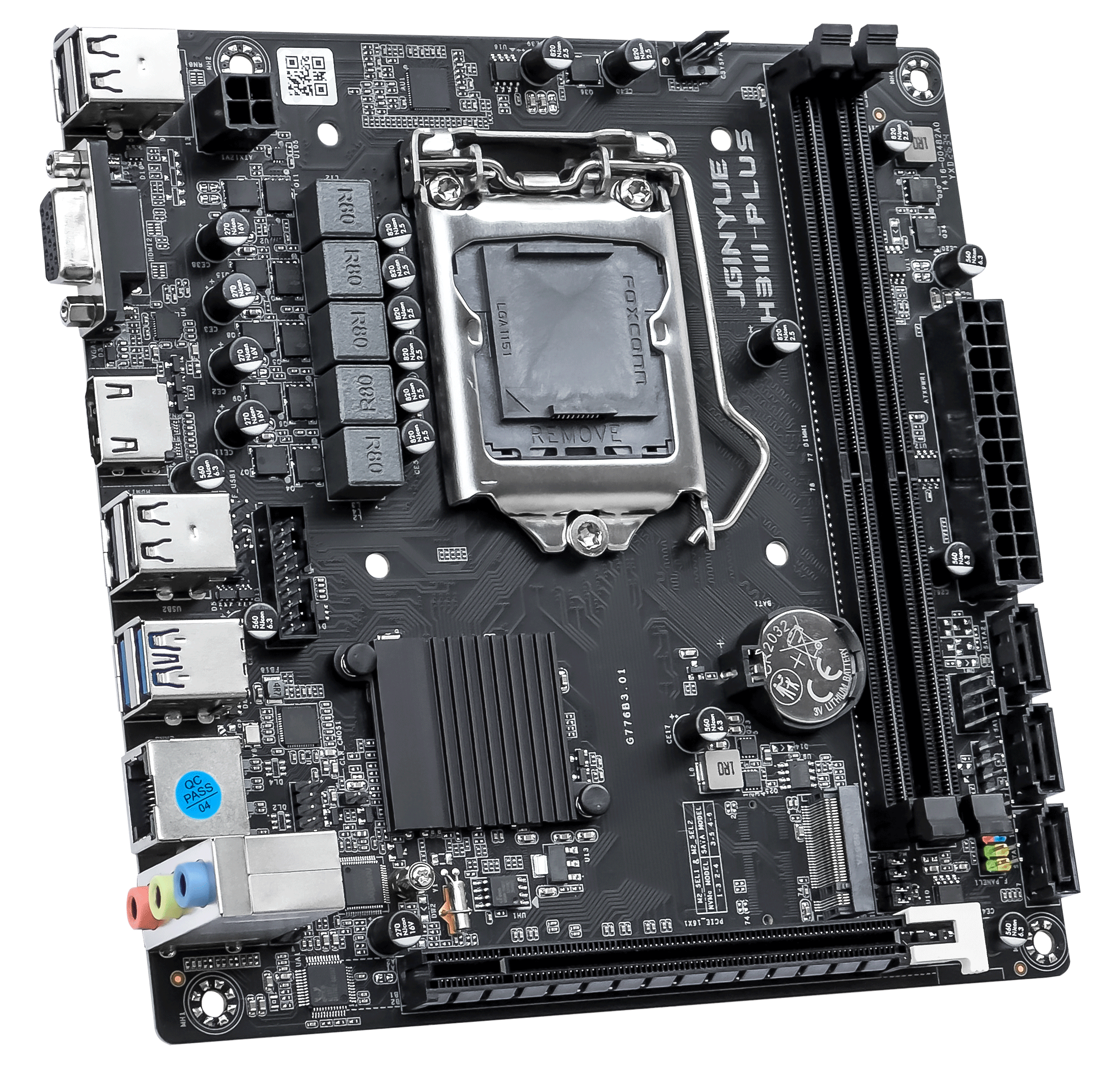

Motherboard model
-
H311i-PLUS
-
Mainboard chip
-
Intel H311 series chip
-
CPU socket
-
Intel LGA1151 supports 6th, 7th, 8th, and 9th generation CPUs
-
Memory slot
-
2 DDR4, dual-channel 2133, 2400MHz. Maximum capacity 32G
-
Store in the interface
-
1 M.2 (2.0x4) NVME/SATA protocol interface (protocol switchable via jumper); 3 SATA 3.0 interfaces
-

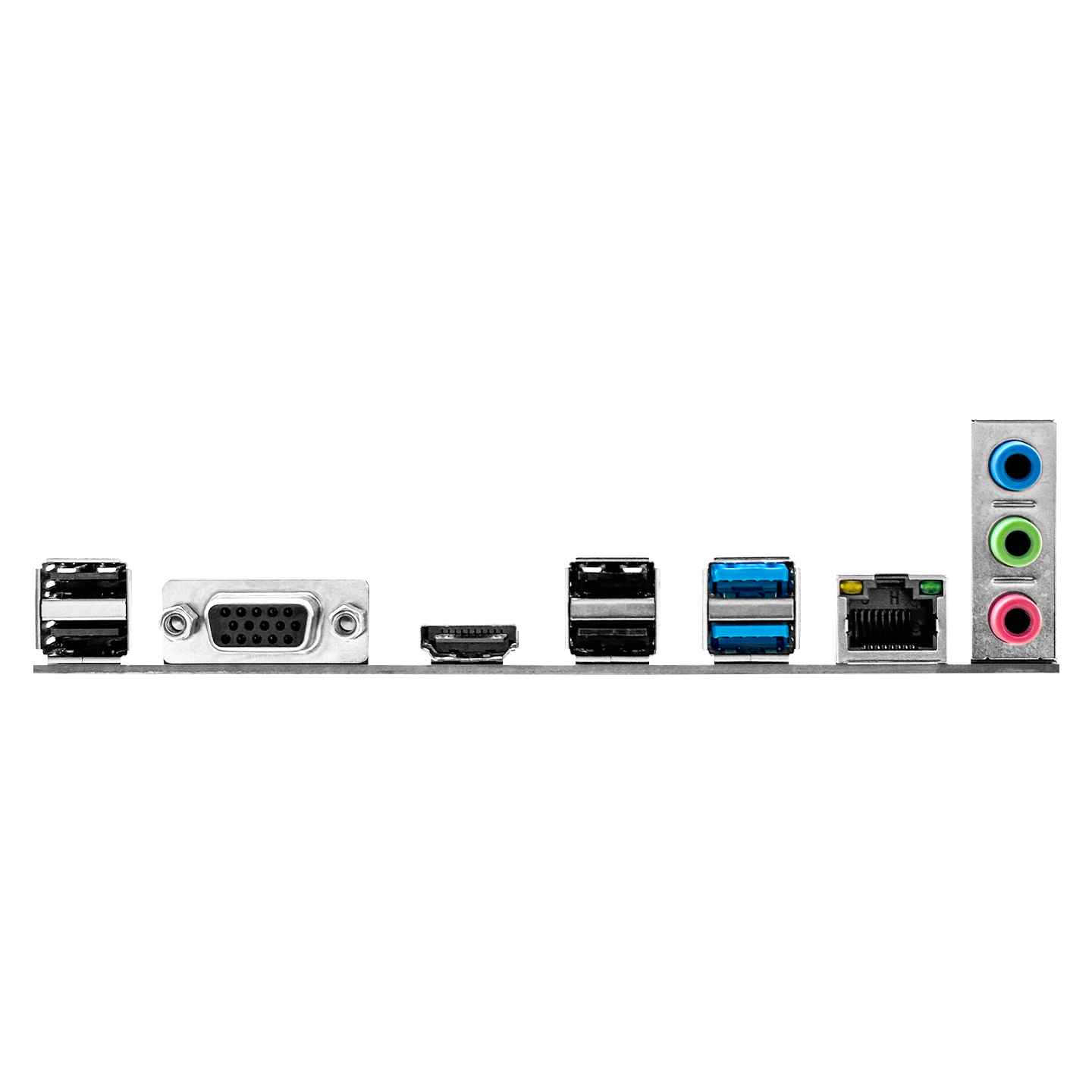

Display interface
-
1 HDMI port; 1 VGA port
-
network interface
-
1 RJ45 interface Realtek 8111 Gigabit
-
Audio chip
-
Realtek ALC897 audio chip
-
USB port
-
Front panel: 4 USB2.0 ports; 2 USB3.0 ports; Front panel pins: 1 USB2.0 pin (extensible to 2 USB2.0 ports); 1 USB3.0 pin
-
power supply interface
-
1 x 24Pin, 1 x 4Pin
-
Number of power supply phases
-
5-phase
-
Expansion slot
-
One PCI Express x16 slot (x8 bandwidth)
-
Fan pin
-
1 x 4-pin connector, 1 x 3-pin connector
-
Product Dimensions
-
17cmx17cm，ITX
-
Other interfaces
-
TPM pin, SPK buzzer pin
Alsa
Software Download
BIOS
instruction book
| FileVersion | System | Updated Date | brief introduction | download |
|---|---|---|---|---|
| Realtek_Audio_Winx64_6_0_9183_1 | win10,win11 64 bits | 2024-05-09 | audio driver |
|
| Realtek_Install_Win10_10051 | win10,win11 64 bits | 2024-05-09 | Network Driver |
|
| FileVersion | System | Updated Date | brief introduction | download |
|---|
| FileVersion | System | Updated Date | brief introduction | download |
|---|---|---|---|---|
| H311I PLUS | 2026-10-10 | Includes the original BIOS and BIOS that supports E3-V5/V6 and E2XXX processors |
|
| FileVersion | System | Updated Date | brief introduction | download |
|---|
