Motherboard model
-

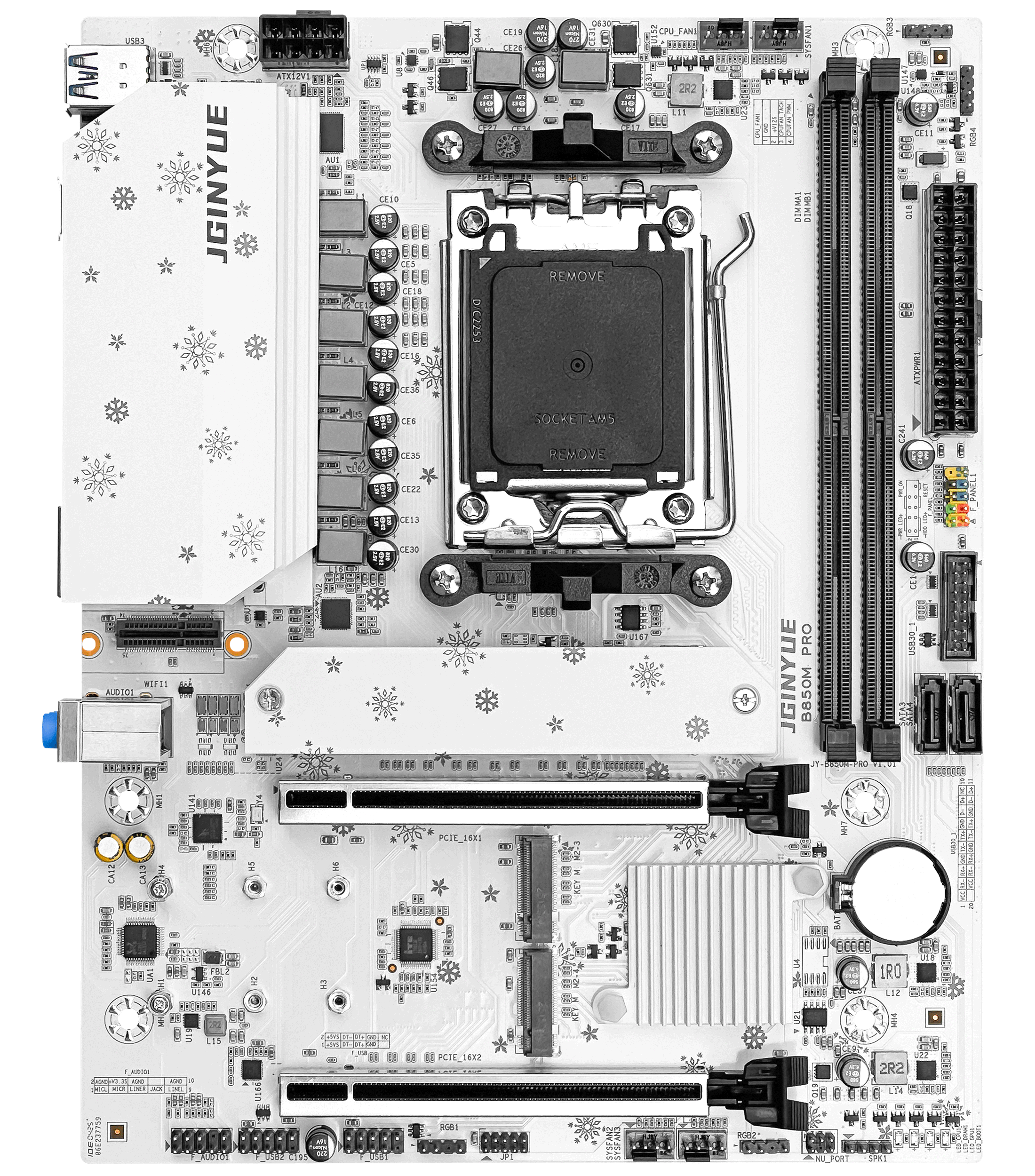

B850M PRO
-
chipset
-
AMD 850 chipset
-
CPU socket
-
Supports AMD AM5 Ryzen 7000/8000/9000 series processors
-
Memory slot
-
2xDDR5
-
Memory capacity
-
96GB
-
Memory frequency
-
Dual channel DDR5 4800~7200+(O.C) MHz
-
USB interface
-
6xUSB3.2 2xUSB2.0
-
USB pin
-
2xUSB2.0 pin bank 1xUSB3.2 pin bank
-
Ethernet interface
-
1x2.5G(RTL8125BG)
-
Audio chip
-
ALC897
-
Number of power supply phases
-
9 phases
-
video interface
-
1xHDMI 1xDP
-
Storage interface
-
1xM.2 NVME5.0/2xM.2 NVME 4.0 2xSATA3.0
-
Expansion Slots
-
1xPCIe 4.0X16 slot 1xPCIe 4.0X16 slot X4 speed
-
ARGB needle arrangement
-
4xARGB 5V3 pin (MCU independent control chip)
-
Fan pin
-
4x4 needle arrangement
-
WiFi interface
-
1xWiFi interface supports PCIE protocol module
-
Specification
-
24x19cm M-ATX
-
Power supply interface
-
24PIN+8PIN
-
Other interfaces
-
SPK1 buzzer pin, diagnostic light, CMOS button
Alsa
Software Download
BIOS
instruction book
| FileVersion | System | Updated Date | brief introduction | download |
|---|
| FileVersion | System | Updated Date | brief introduction | download |
|---|
| FileVersion | System | Updated Date | brief introduction | download |
|---|---|---|---|---|
| B850M PRO (AM5MF007) | 2025-05-09 | OPTIMIZED PCIE OPTIONS |
|
|
| B850M PRO (AM5MF006) | 2025-05-08 | Updated and optimized memory compatibility, and fixed the bug of using 50 series or 9000 series graphics cards. |
|
| FileVersion | System | Updated Date | brief introduction | download |
|---|
