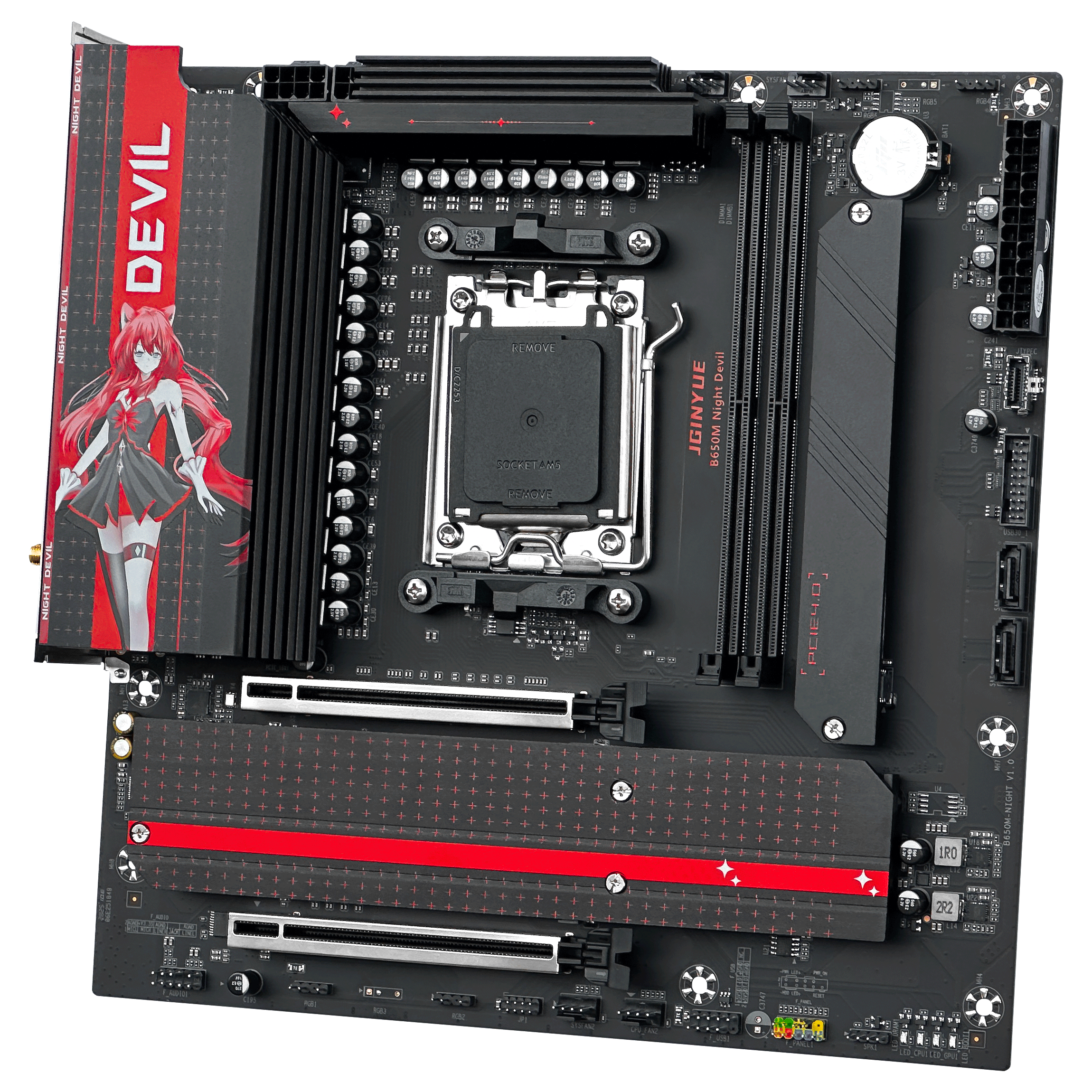

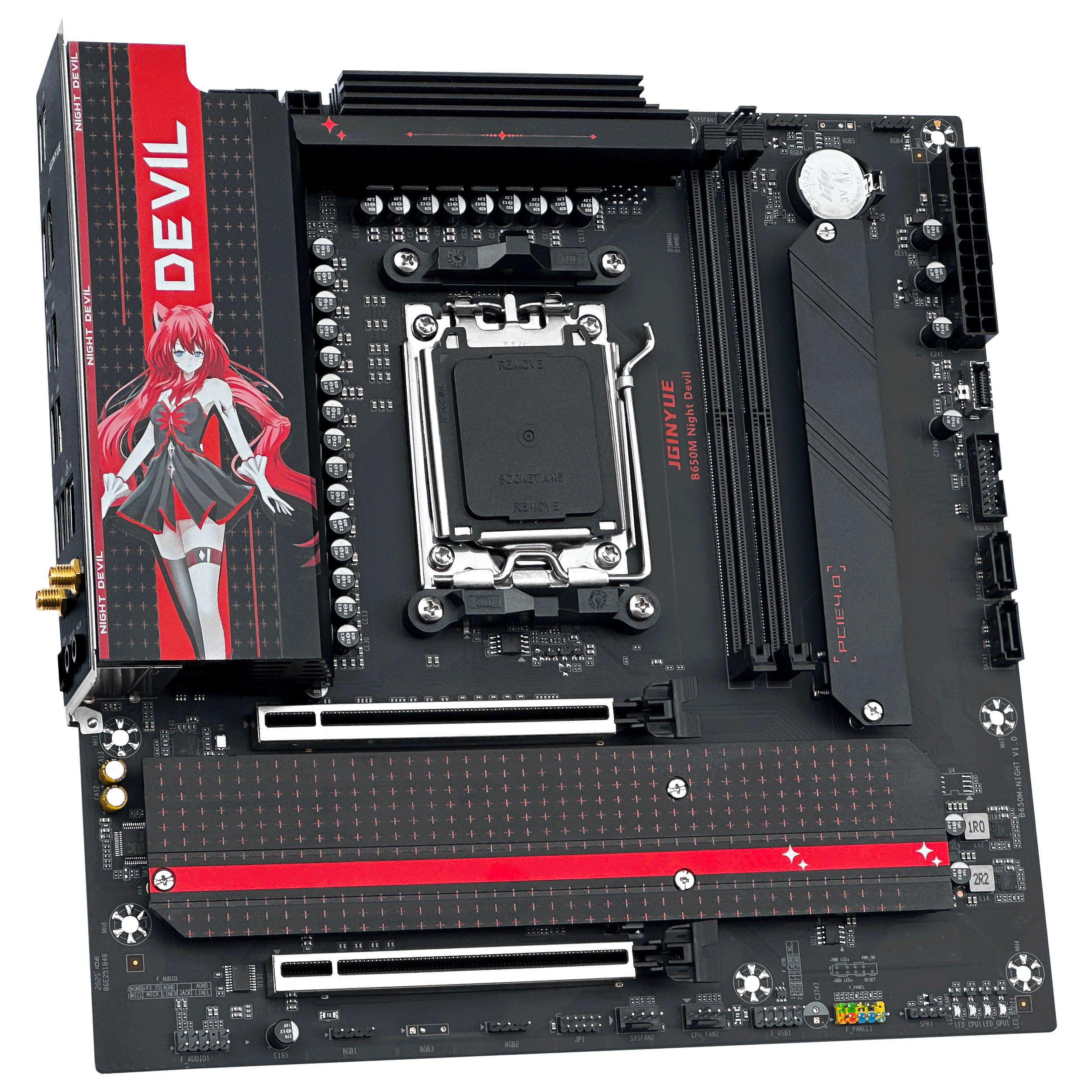

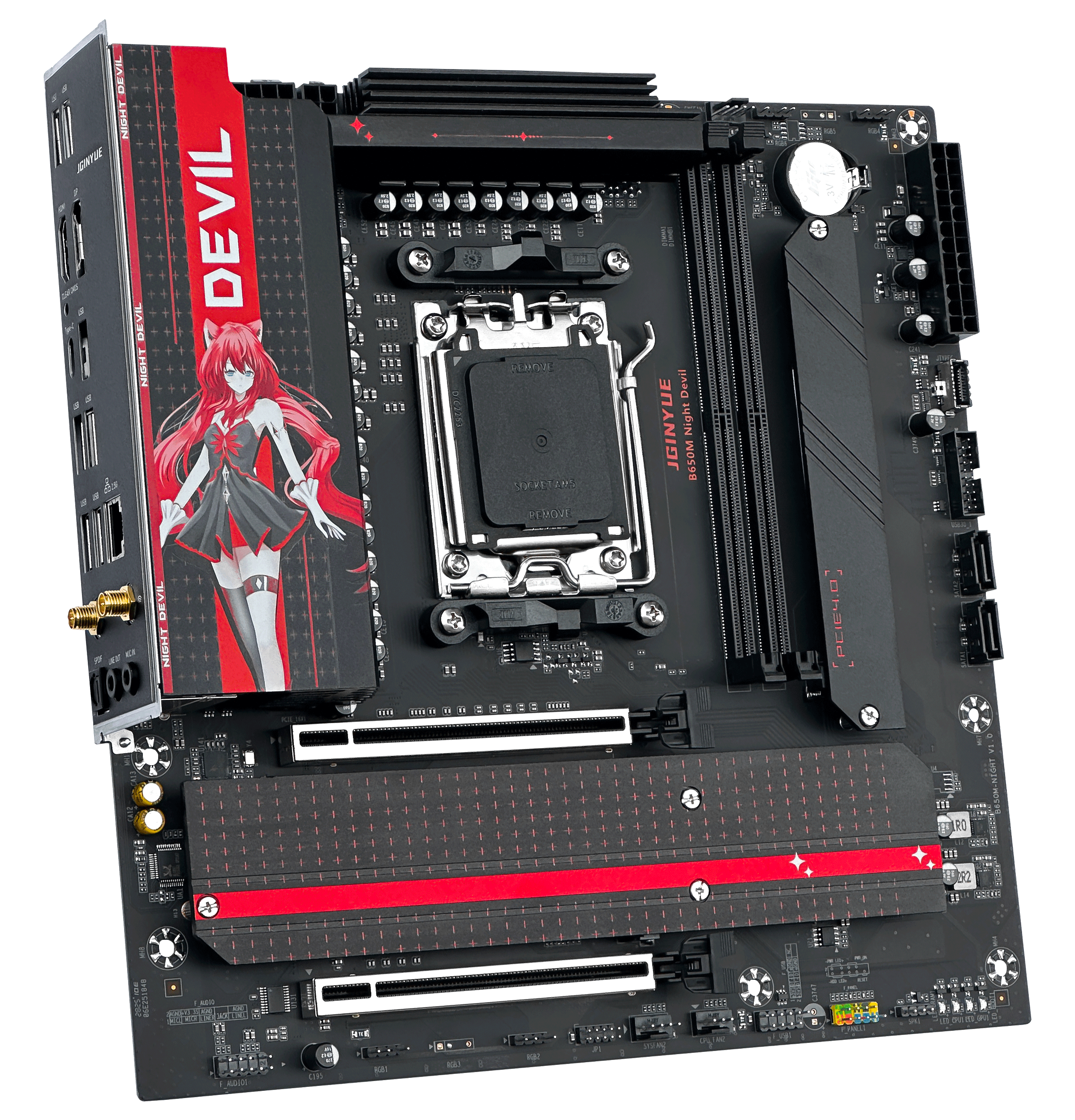

JGINYUE B650M Night Devil motherboard
Supports AMD AM5 Ryzen 7000/8000/9000 series processors
2xDDR5 capacity expandable up to 96G dual channel 4800~9000+(O.C) MHz(Tested with Ryzen 8000 series CPU)
2xSATA3.0 3xM. 2 slots/supports PCIe 4.0x4
1xPCIe 4.0X16 slot 1xPCIe 4.0X16 slot X4 speed
4xARGB 5V3 pin (MCU independent control chip)
1xType-E slot, expandable with 1 5Gbps Type-C interface
1xType-C slot 1x2.5G network interface diagnostic light
1xWiFi interface supports PCIE protocol module
  • Details Introduction
  • specification parameter
  • download
  • Motherboard model
  • B650M Night Devil
  • CPU socket
  • Supports AMD AM5 Ryzen 7000/8000/9000 series processors
  • chipset
  • AMD B650 chipset
  • Memory slot
  • 2xDDR5 dual channel
  • Memory capacity
  • 96G
  • Memory frequency
  • 4800~9000+(O.C)MHz(Tested with Ryzen 8000 series CPU)
  • Storage interface
  • 2xSATA3.0 3xM. 2 slots/supports PCIe 4.0x4
  • PCIe slot
  • 1xPCIe 4.0X16 slot 1xPCIe 4.0X16 slot X4 speed

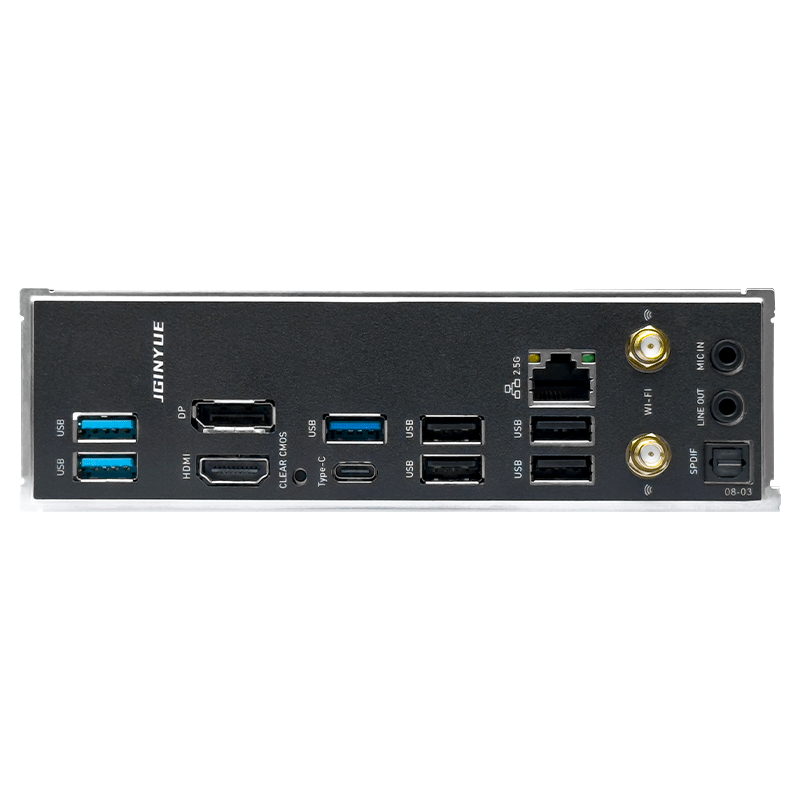

  • USB interface
  • 4xUSB 2.0 3xUSB 3.2 1xUSB 2.0 pin bank expandable 2 USB 2.0 1xUSB 3.2 pin bank expandable 2 USB 3.2
  • ARGB needle arrangement
  • 4xARGB 5V3 pin (MCU independent control chip)
  • display interface
  • 1xHDMI 1xDP
  • Type-C interface
  • 1xType-E slot, expandable with 1 5Gbps Type-C interface 1xType-C slot
  • Fan pin
  • 4x4 needle arrangement
  • Number of power supply phases
  • 19 phase power supply
  • WiFi interface
  • 1xWiFi interface supports PCIE protocol module
  • Network
  • RTL8125BG 2.5G Ethernet chip
  • Audio chip
  • Realtek ALC897
  • Specification
  • 24.5x24.5cm M-ATX
  • Other interfaces
  • 1xCMOS button diagnostic light
Alsa
Software Download
BIOS
instruction book
    • FileVersion System Updated Date brief introduction download
    Audio_W10 sound card win10,win11 64 bits 2024-05-09 audio driver
    2.5GNIC driver 2024-05-09 Network Driver
    • FileVersion System Updated Date brief introduction download
    OpenRGB-MCU-2026 win10&win11 2026-01-20 RGB desktop control software
    • FileVersion System Updated Date brief introduction download
    B650M Night Devil (AM5MN007) 2026-10-20 1. Updated to AGESA ComboAM5 PI version 1.3.0.1d. 2. Updated the Secure Boot key certificate to the 2023 version. 3. Fixed the motherboard debug light staying on after waking from sleep.
    B650M Night Devil (AM5MN006) 2026-04-02 Optimize compatibility with certain external network cards
    B650M Night Devil (AM5MN005) 2026-03-17 Update Agesa PL1.3.0.0
    B650M Night Devil (AM5MN004) 2025-10-16 Optimizing peripheral device compatibility
    B650M Night Devil (AM5MN002) 2025-08-30 First version BIOS
