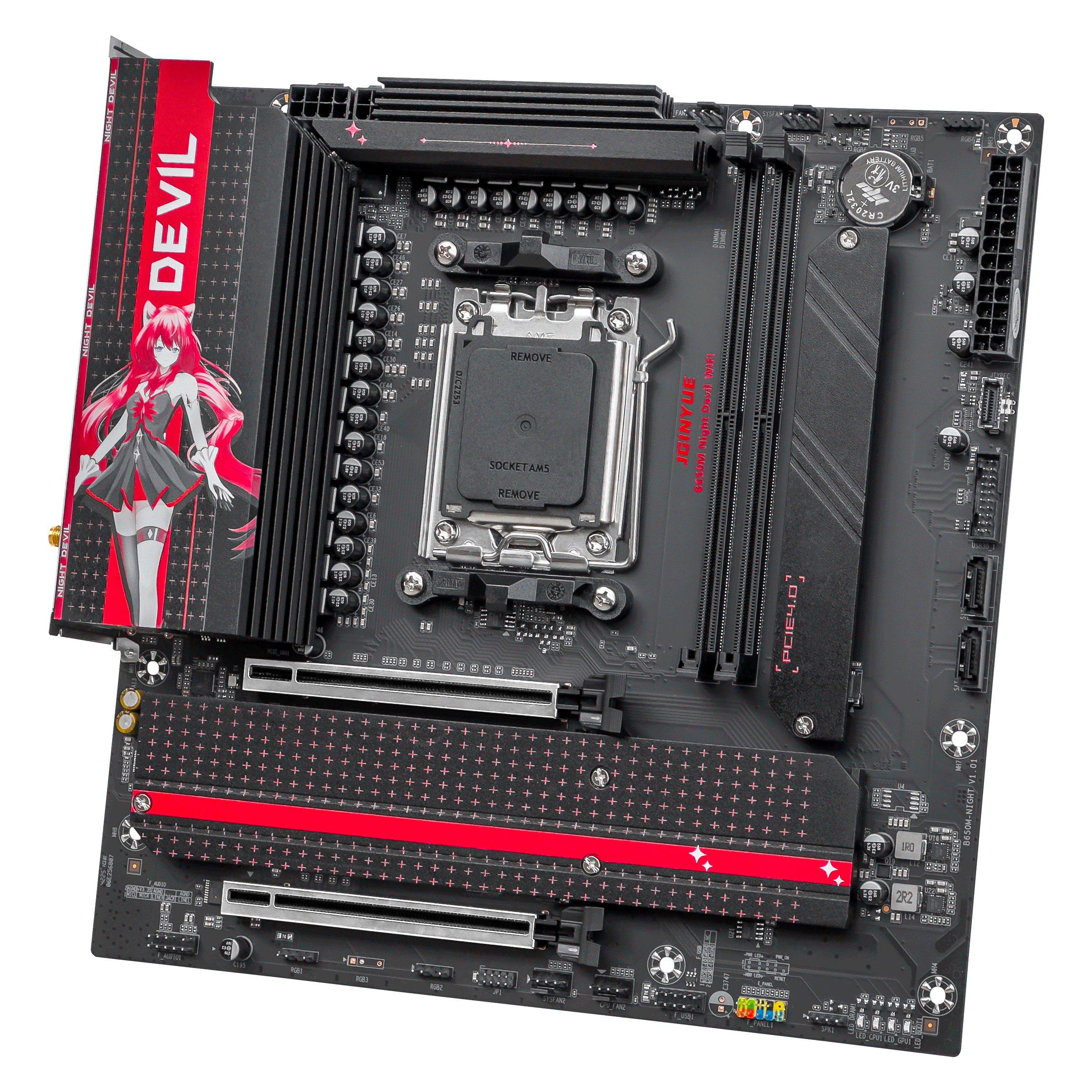

JGINYUE B650M Night Devil WIFI motherboard
Supports AMD AM5 Ryzen 7000/8000/9000 series processors
2xDDR5 capacity expandable up to 96G dual channel 4800~9000+(O.C) MHz (tested with Ryzen 8000 series CPU)
2xSATA3.0 3xM. 2 slots/supports PCIe 4.0x4
1xPCIe 4.0X16 slot 1xPCIe 4.0X16 slot X4 speed
4xARGB 5V3 pin (MCU independent control chip)
1xType-E slot, expandable with 1 5Gbps Type-C interface
1xType-C slot 1x2.5G network interface diagnostic light
1xWiFi interface (equipped with 7902 module and antenna)
  • Details Introduction
  • specification parameter
  • download
  • Motherboard model
  • B650M Night Devil WIFI
  • CPU slot
  • Supports AMD AM5 Ryzen 7000/8000/9000 series processors
  • chipset
  • AMD B650 chipset
  • Memory slot
  • 2xDDR5 dual channel
  • Memory capacity
  • 96G
  • Memory Frequency
  • 4800~9000+(O.C) MHz (tested using Ryzen 8000 series CPU)
  • Storage interface
  • 2xSATA3.0 3xM. 2 slots/supports PCIe 4.0x4
  • PCIe slot
  • 1xPCIe 4.0X16 slot 1xPCIe 4.0X16 slot X4 speed

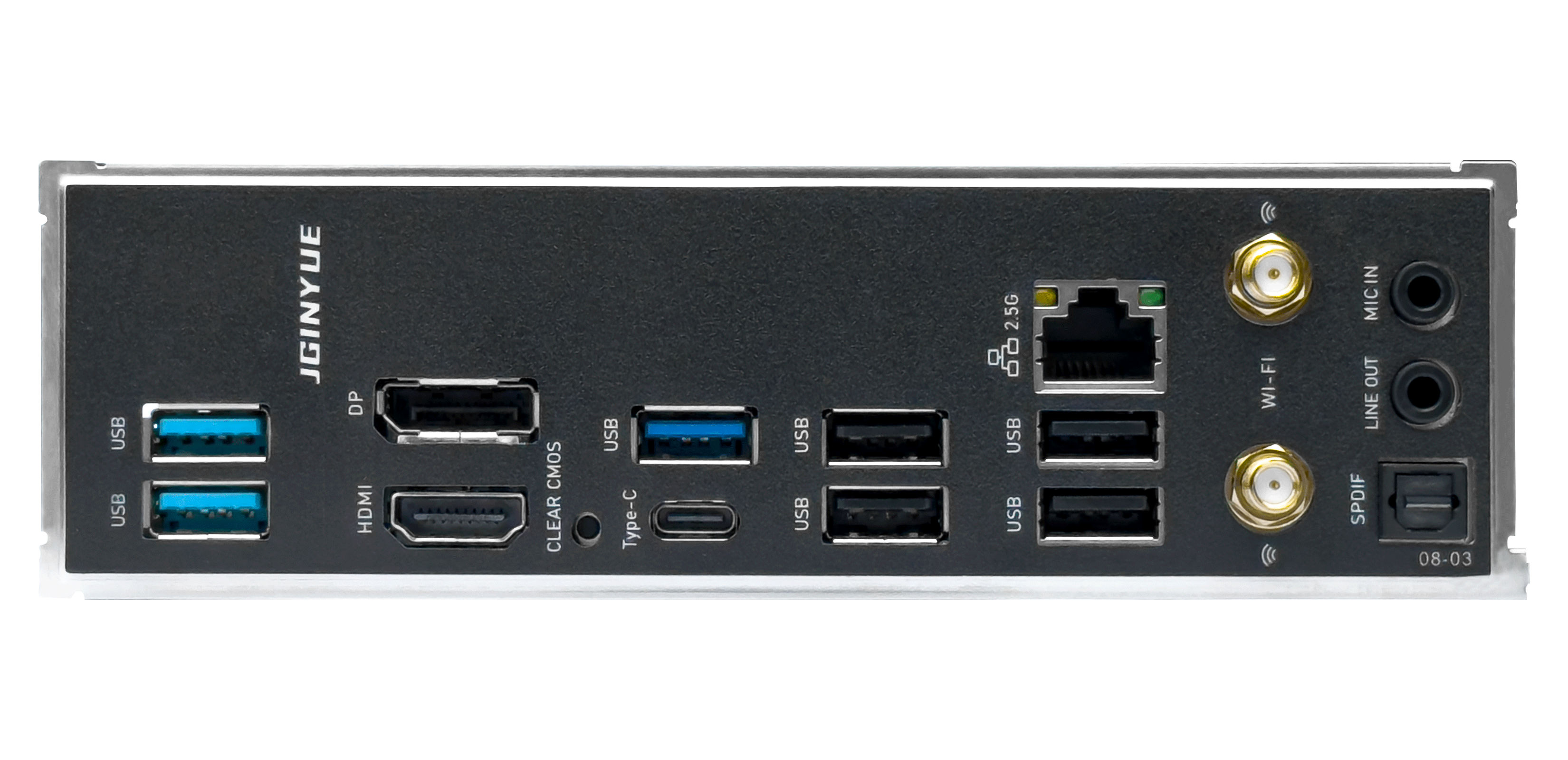

  • USB port
  • 4xUSB 2.0 3xUSB 3.2 1xUSB 2.0 pin bank expandable 2 USB 2.0 1xUSB 3.2 pin bank expandable 2 USB 3.2
  • ARGB needle arrangement
  • 4xARGB 5V3 pin (MCU independent control chip)
  • display interface
  • 1xHDMI 1xDP
  • Type-C port
  • 1xType-E slot, expandable with 1 5Gbps Type-C interface 1xType-C slot
  • Fan pin
  • 4x4 needle arrangement
  • Number of power supply phases
  • 19 phase power supply
  • WiFi interface
  • 1xWiFi interface (equipped with 7902 module and antenna)
  • network type
  • RTL8125BG 2.5G Ethernet chip
  • Audio chip
  • Realtek ALC897　
  • Dimensions
  • 24.5x24.5cm M-ATX
  • other interfaces
  • 1xCMOS button diagnostic light
Alsa
Software Download
BIOS
instruction book
    • FileVersion System Updated Date brief introduction download
    Audio_W10 sound card win10,win11 64 bits 2024-05-09 audio driver
    2.5GNIC driver 2024-05-09 Network Driver
    • FileVersion System Updated Date brief introduction download
    OpenRGB-MCU-20240913 win10&win11 2024-09-16 RGB desktop control software
