JGINYUE B550M PLUS ARGB motherboard
Supports AMD AM4 4000 and 5000 series processors
Supports dual channel 2xDDR4 memory slots with a maximum capacity of 64G
Memory frequency: 2133/2400/2666/2800/3000/3200/3333/3466/3600/3733/3866/4000MHz (supports XMP technology/actual situation may vary depending on different CPU and memory configurations)
Display interface: 1xHDMI, 1xVGA interface
4xSATA3.0, 2xM.2 NVMe protocol interface
Rear 4xUSB 3.2, 4xUSB 2.0; Front mounted 1xUSB3.0 pin, 1xUSB2.0 pin
1xPCI Express x16 slot (directly connected to CPU auto recognition 3.0 or 4.0)
  • Details Introduction
  • specification parameter
  • download
  • Motherboard model
  • B550M PLUS WIFI
  • chipset
  • AMD B550 Chipset
  • CPU pins
  • Supports AMD AM4 4000 and 5000 series processors
  • Memory slot
  • 2xDDR4 memory slots
  • Memory capacity
  • Maximum support for 64GB (32GB * 2)
  • Memory frequency
  • Dual channel support 2133/2400/2666/2800/3000/3200/3333/3466/3600/3733/3866/4000MHz (supports XMP technology/actual situation may vary depending on different CPU and memory configurations)
  • display interface
  • 1xHDMI，1xVGA
  • Storage interface
  • 4xSATA3.0 6Gbps； 1xM.2 nvme protocol interface 4.0x4, 1xM.2 nvme protocol interface 3.0x4
  • USB interface

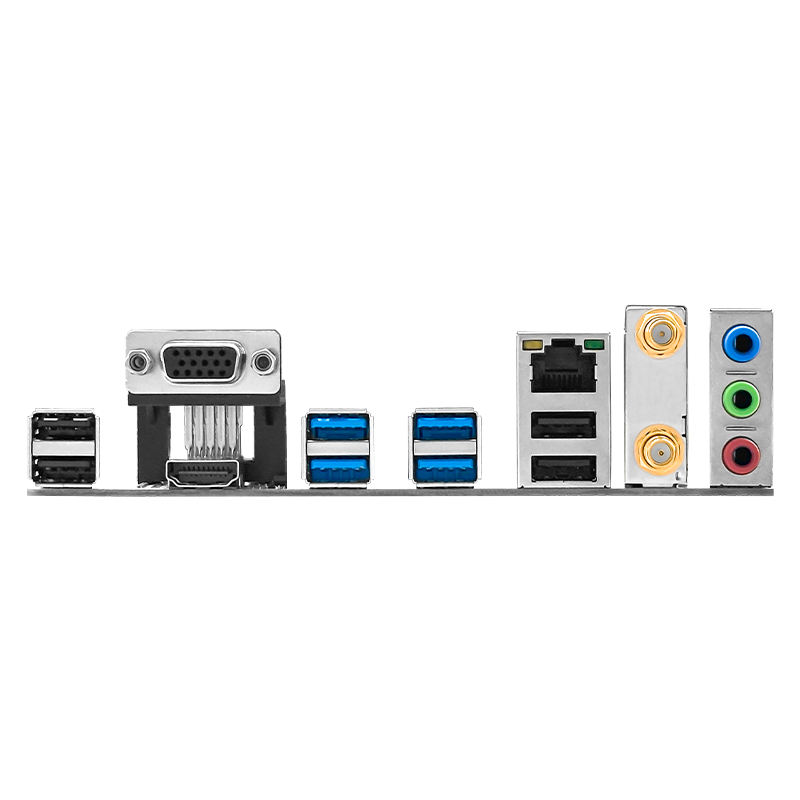

  • Rear 4xUSB 3.2, 4xUSB 2.0; Front mounted 1xUSB3.0 pin expandable 2xUSB3.2, 1xUSB2.0 pin expandable 2xUSB2.0
  • PCIe interface
  • 1xPCI Express x16 slot 4.0 (direct CPU auto recognition 3.0 or 4.0), 1xPCI Express x1 slot
  • Wireless interface
  • 1xwifi interface (equipped with WiFi6E module and antenna)
  • Onboard sound card
  • Realtek ALC897
  • Onboard network card
  • Realtek 8111H
  • Power socket
  • Mainboard powered by 24 pins, CPU powered by 8 pins
  • Fan pin
  • 2x4 needles 1x3 needles
  • Number of power supply phases
  • 6-phase power supply
  • Specification
  • 21.5cmx19.5cm M-ATX
  • ARGB pin
  • 2xARGB 5V3 pins (MCU independent control chip)
  • supportive system
  • Windows10； Windows11
  • Other interfaces
  • 1xSPK1 buzzer pin
Alsa
Software Download
BIOS
instruction book
    • FileVersion System Updated Date brief introduction download
    Realtek Audio Driver 6.0.9239.1 win10,win11 64 bits 2024-05-09 audio driver
    network_Realtek_w10_64 win10,win11 64 bits 2024-05-09 Network Driver
    MT7902-D win10&win11 2025-05-17 WIFI and Bluetooth driver
    • FileVersion System Updated Date brief introduction download
    OpenRGB-MCU-20240913 win10&win11 2024-09-16 RGB desktop control software
