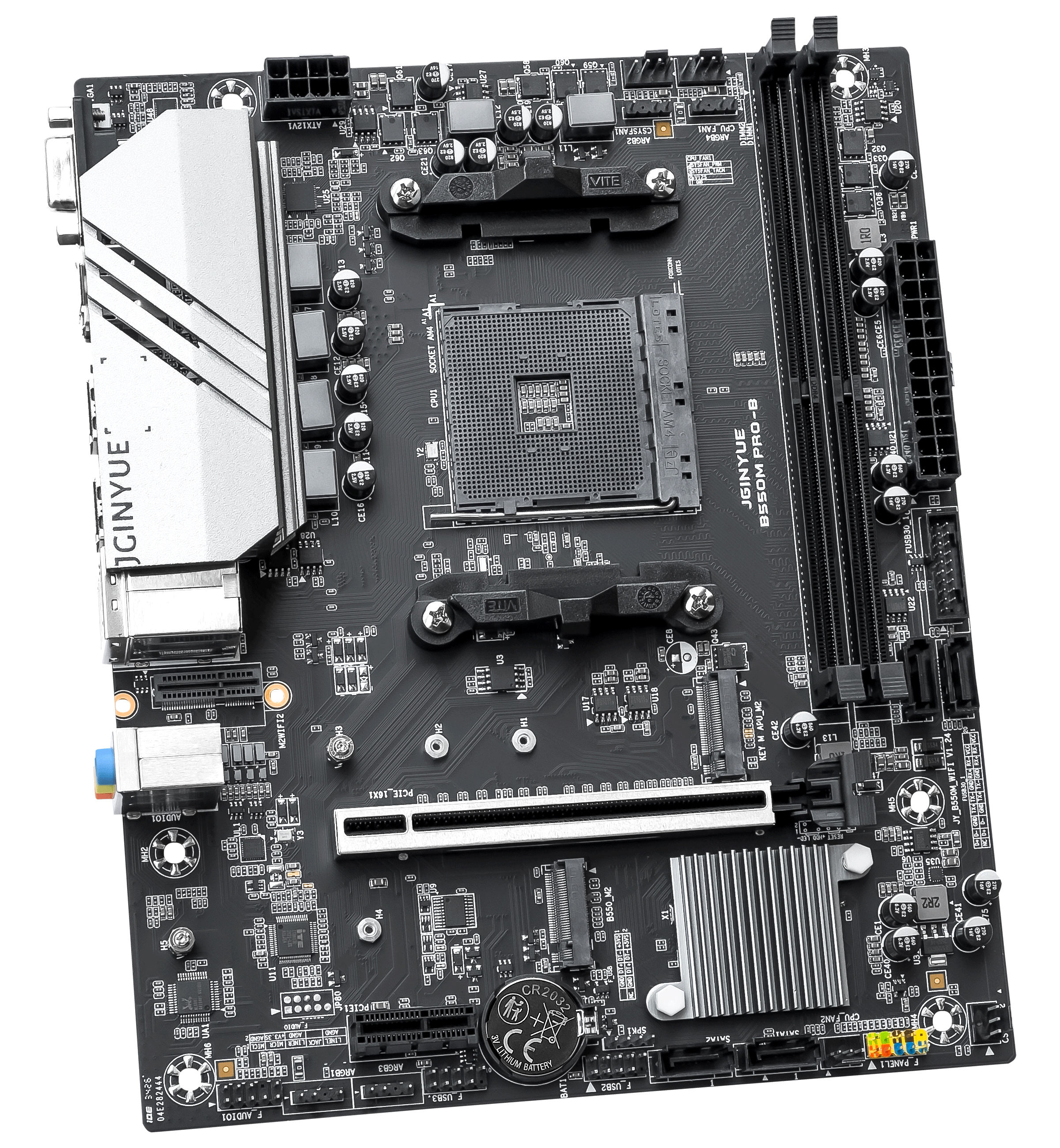

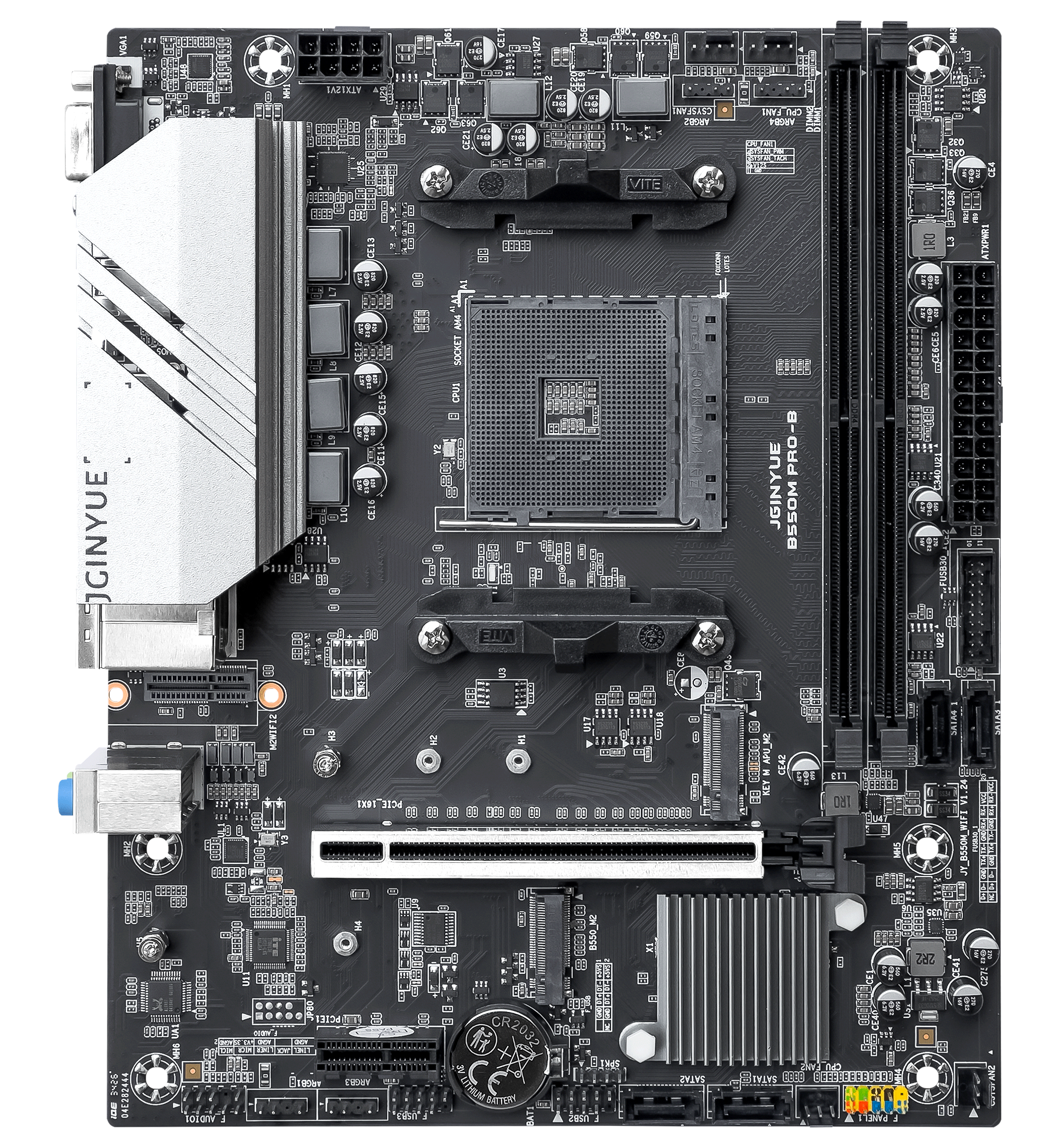

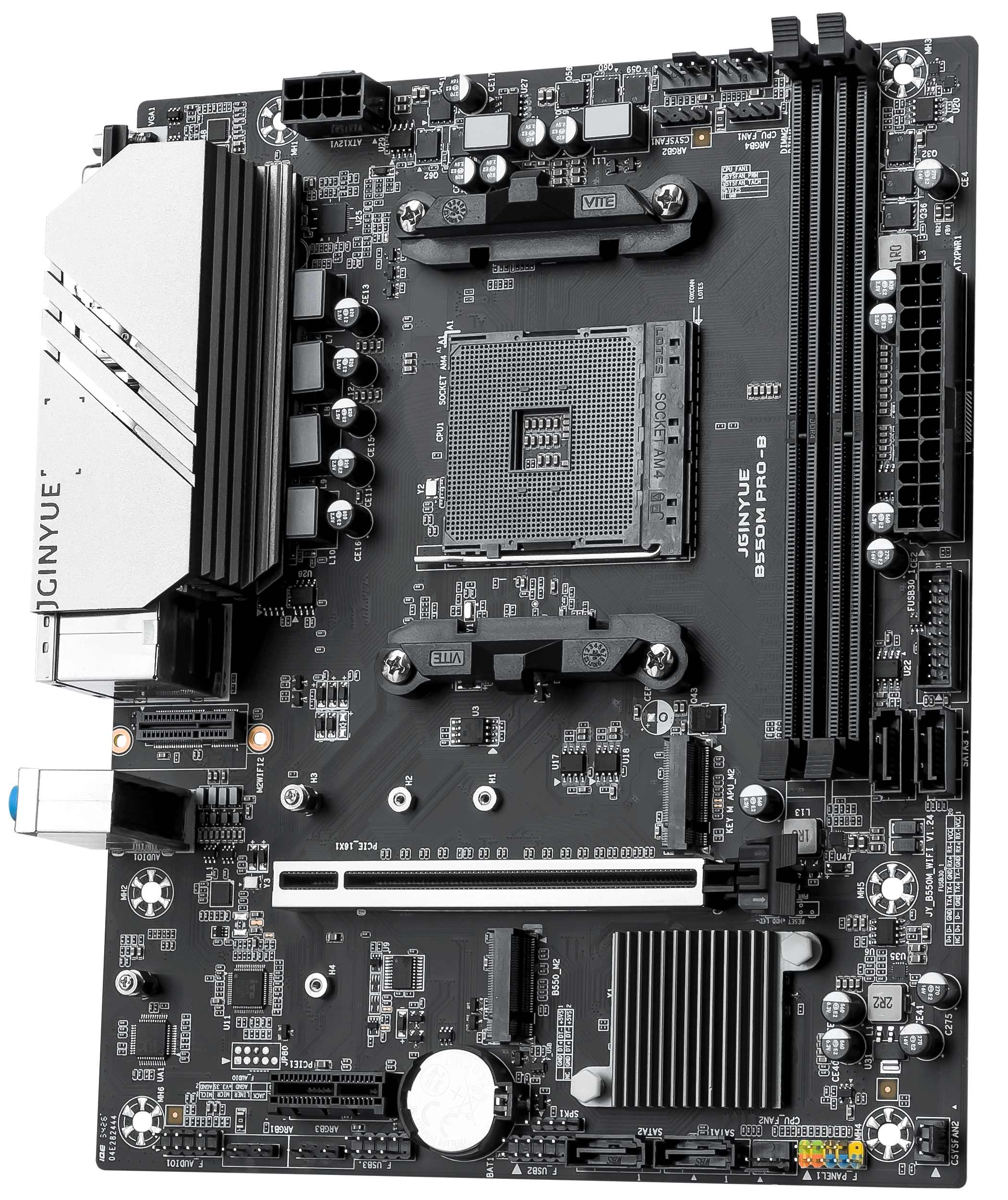

JGINYUE B550M PRO-B motherboard
Supports AMD AM4 4000 and 5000 series processors
4 SATA3.0 6Gbps; 1 M.2 nvme protocol interface 4.0x4, 1 M.2 nvme protocol interface 3.0x4
1 PCI Express x16 slot 4.0 (directly connected to CPU, automatically recognizes 3.0 or 4.0), 1 PCI Express x1 slot
1 WiFi interface (Modules supporting the PCIe protocol)
4x ARGB 5V 3-pin (MCU independent control chip)
  • Details Introduction
  • specification parameter
  • download
  • Motherboard model
  • B550M PRO-B
  • chipset
  • AMD B550 Chipset
  • CPU pins
  • Supports AMD AM4 4000 and 5000 series processors
  • Memory slot
  • 2 DDR4 memory slots
  • Memory capacity
  • Supports up to 64GB (32GB x 2)
  • Memory frequency
  • Dual-channel supports frequencies of 2133/2400/2666/2800/3000/3200/3333/3466/3600/3733/3866/4000MHz (supports XMP technology / actual performance may vary based on different CPU and memory configurations)
  • Display interface
  • 1 HDMI, 1 VGA, 1 DP
  • Storage interface
  • 4 SATA3.0 6Gbps; 1 M.2 nvme protocol interface 4.0x4, 1 M.2 nvme protocol interface 3.0x4
  • USB port

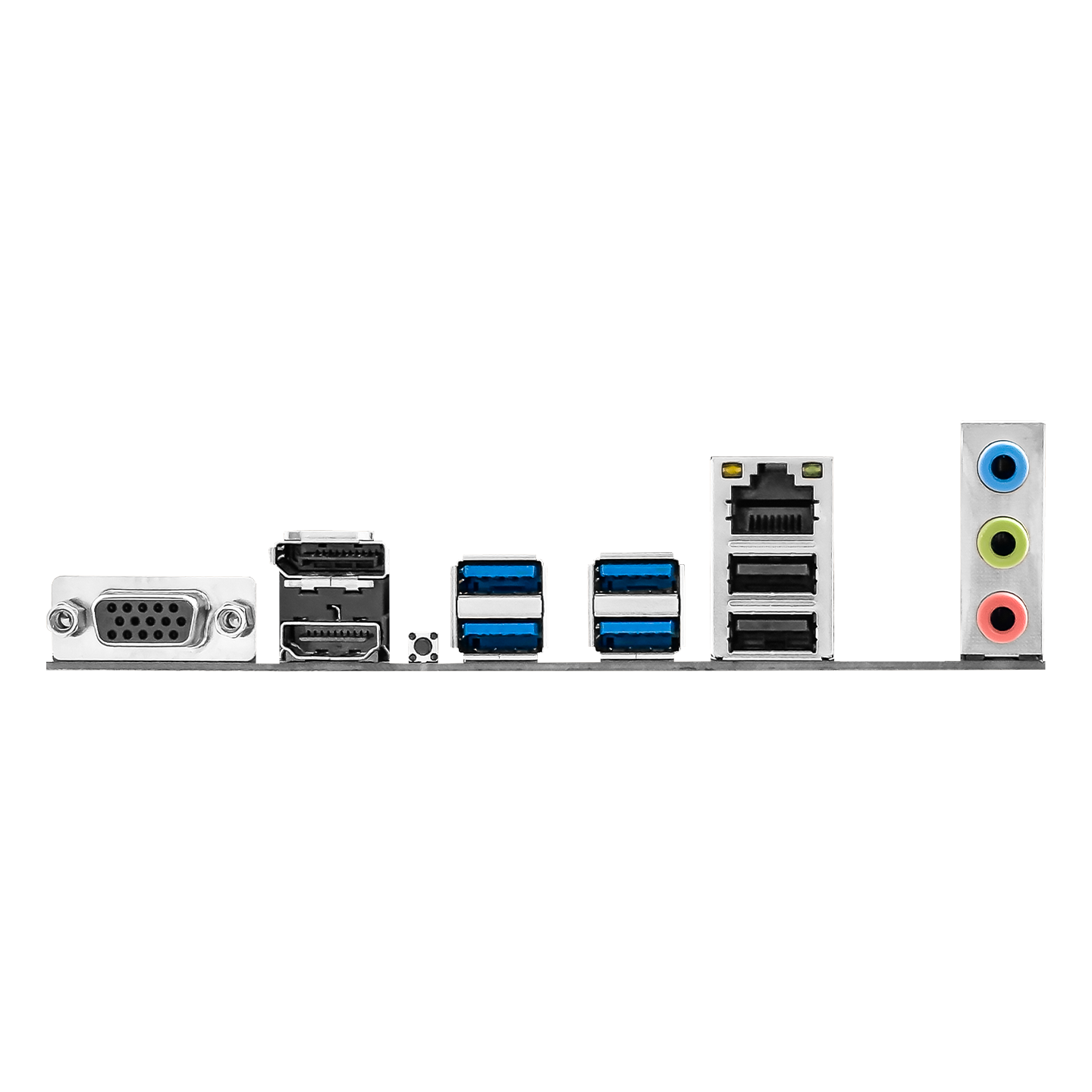

  • Rear: 4 USB3.2 ports, 2 USB2.0 ports; front: 1 USB3.0 pin header with the ability to expand to 2 USB3.2 ports, 2 USB2.0 pin headers with the ability to expand to 4 USB2.0 ports
  • PCIe interface
  • 1 PCI Express x16 slot 4.0 (directly connected to CPU, automatically recognizes 3.0 or 4.0), 1 PCI Express x1 slot
  • Wireless interface
  • 1 WiFi interface (Modules supporting the PCIe protocol)
  • Onboard sound card
  • Realtek ALC897
  • Onboard network interface controller
  • Realtek 8111H
  • Power socket
  • 24Pin power supply for the motherboard, 8Pin power supply for the CPU
  • Fan pin
  • 2 x 4-pin, 2 x 3-pin
  • Number of power supply phases
  • 6-phase power supply
  • Dimensions
  • 22cmx18cm M-ATX
  • ARGB pin
  • 4x ARGB 5V 3-pin (MCU independent control chip)
  • support system
  • Windows10；Windows11
  • Other interfaces
  • 1 SPK1 buzzer pin, 1 BIOS reset button
Alsa
Software Download
BIOS
instruction book
    • FileVersion System Updated Date brief introduction download
    Realtek Audio Driver 6.0.9239.1 win10,win11 64 bits 2024-05-09 audio driver
    network_Realtek_w10_64 win10,win11 64 bits 2024-05-09 Network Driver
    • FileVersion System Updated Date brief introduction download
    OpenRGB-MCU-2026 win10&win11 2026-01-20 RGB desktop control software
