mainboard/ INTEL Series/ Intel LGA 2011/ JGINYUE X79M-G ARGB motherboard

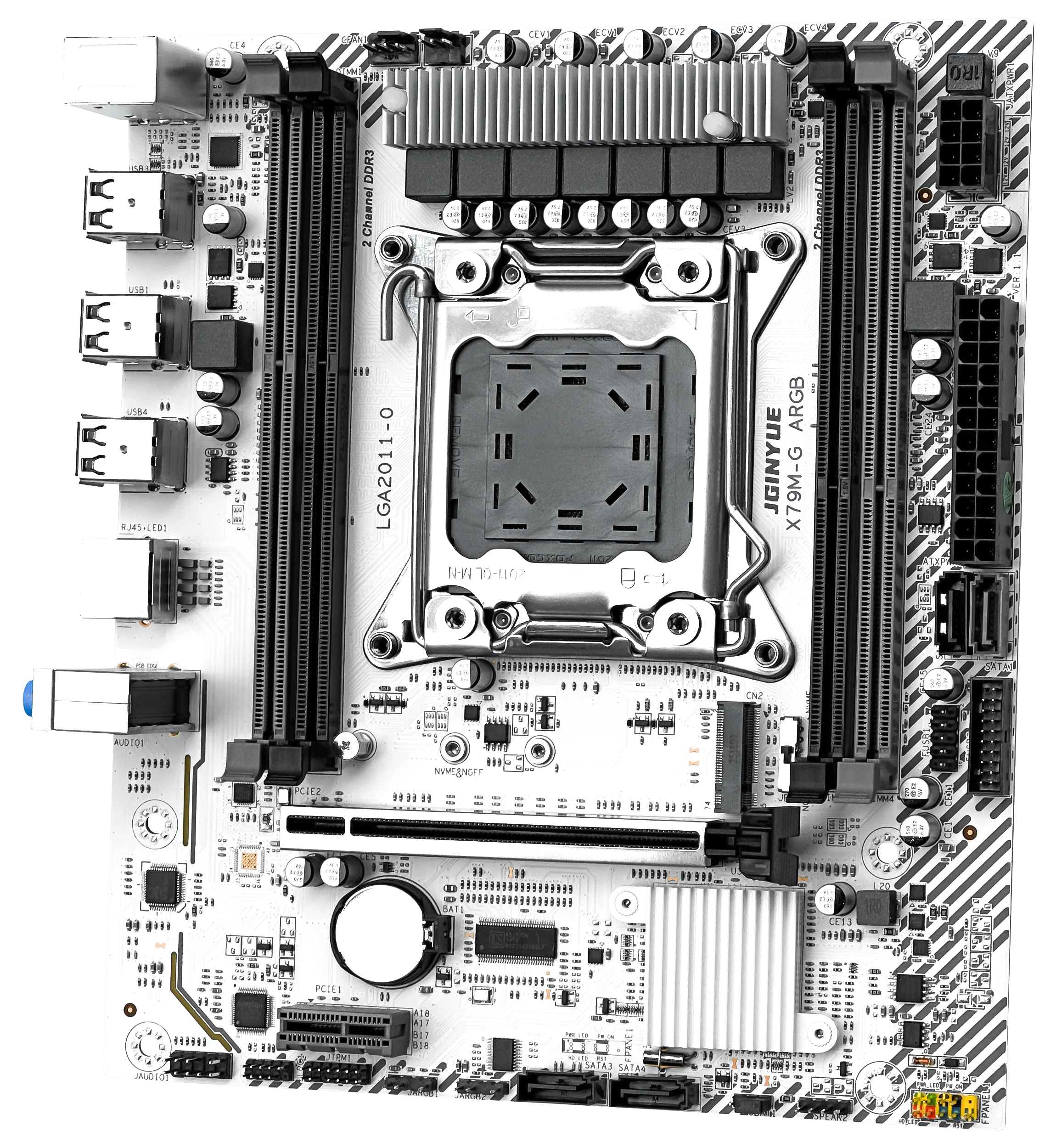

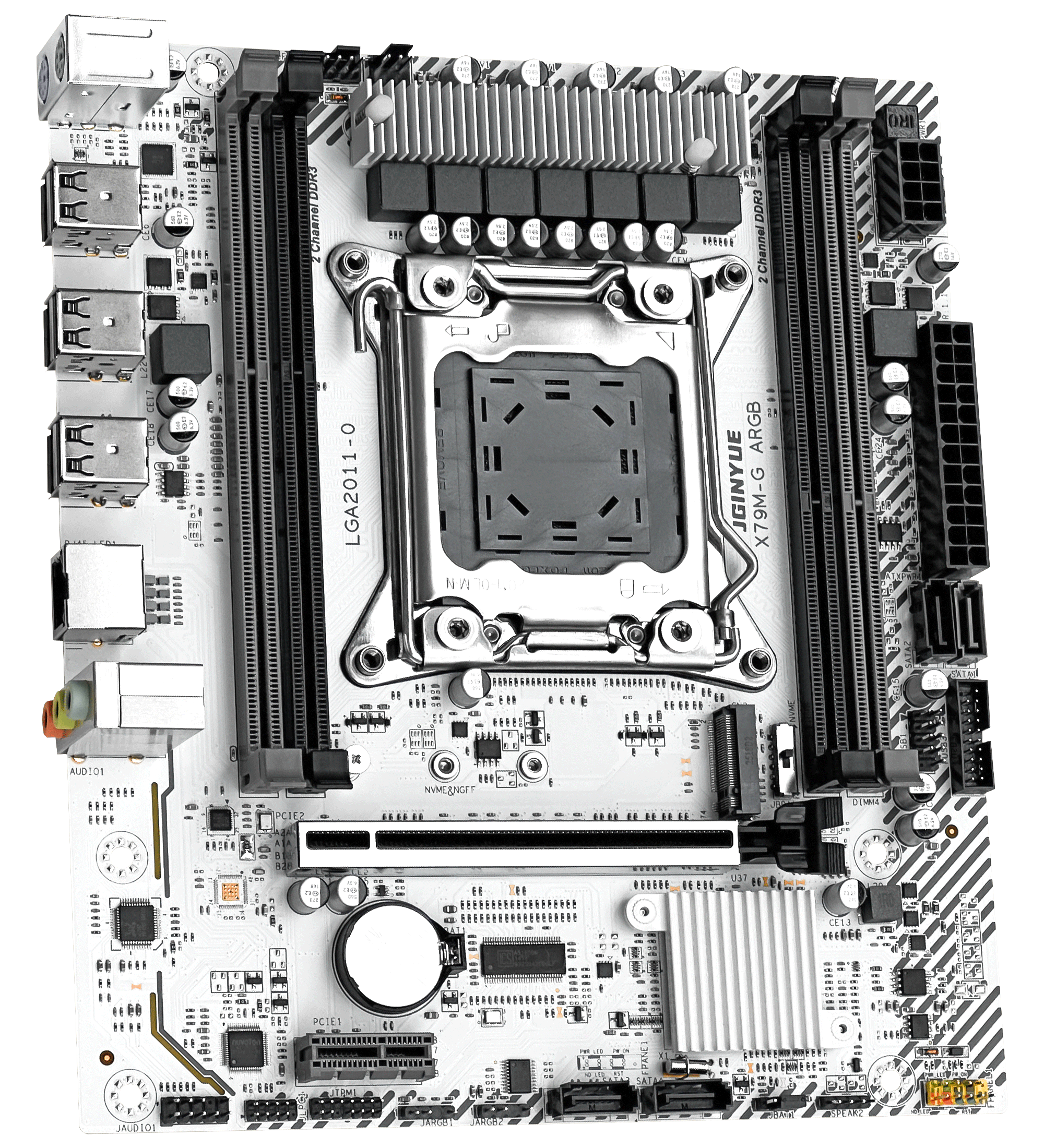

JGINYUE X79M-G ARGB motherboard
Support Intel LGA2011 Zhiqiang E5 V1 V2 series processors
DDR3 1066MHz / 1333MHz / 1600MHz
Adopting 7-phase power supply
Rear 6xUSB2.0; Front mounted 2xUSB2.0, 1xUSB3.0 (speed 2.0)
1xPCIe X16 slot; 1xPCIe X1 slot
1x Gigabit Ethernet interface
1xSATA3.0，3xSATA2.0
1xM.2 interface supports NVME and SATA protocols (switch protocol)
  • Details Introduction
  • specification parameter
  • download
  • Motherboard model
  • X79M-G ARGB
  • chipset
  • intel X79
  • CPU pins
  • Support Intel LGA2011 Zhiqiang E5 V1 V2 series processors
  • Memory slot
  • 4xDDR3 memory slot dual channel
  • Memory capacity
  • The maximum capacity supports 128GB
  • Memory standard
  • Supports dual channel 1066MHz/1333MHz/1600MHz
  • Storage interface
  • The 1xM.2 interface supports NVME and SATA protocols (switch protocol); 1xSATA3.0； 3xSATA2.0
  • USB interface

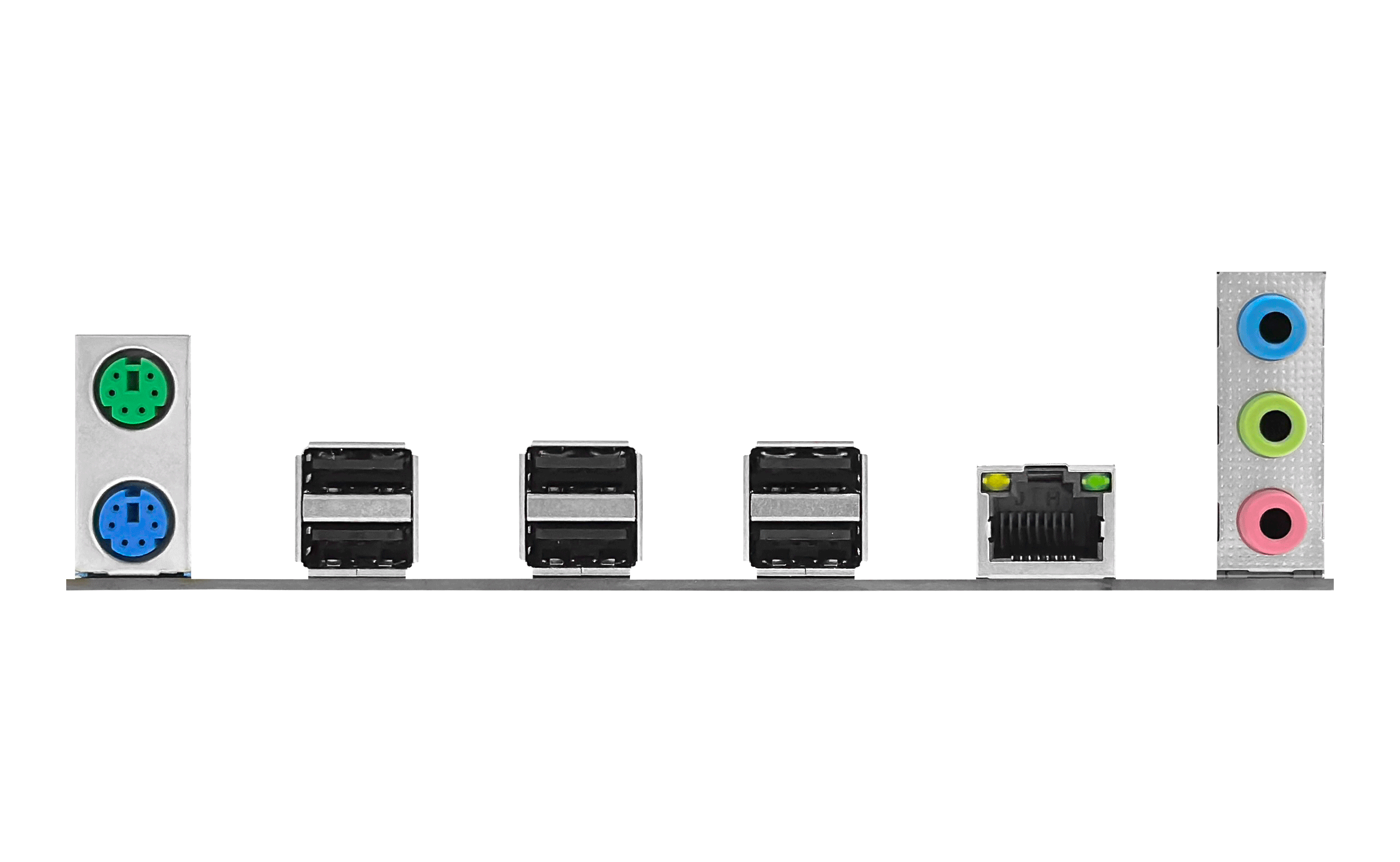

  • Rear 6xUSB2.0;
  • USB pin
  • Front end 1xUSB 2.0, 1xUSB 3.0 (speed 2.0)
  • Expansion
  • 1xPCI Express x16 3.0 slot; 1xPCI Express x1 2.0 slot
  • Onboard sound card
  • Realtek ALC662
  • Onboard network card
  • Realtek 8111H
  • Power supply interface
  • 24Pin+8Pin
  • Number of power supply phases
  • 7-phase power supply
  • Fan pin
  • 1x4 needles; 1x3 needles
  • Motherboard size
  • 21.5cmx19cm M-ATX
Alsa
Software Download
BIOS
instruction book
    • FileVersion System Updated Date brief introduction download
    Realtek_Install_Win10_10063_11222022 win10,win11 64 bits 2024-05-09 Network Driver
    • FileVersion System Updated Date brief introduction download
    OpenRGB-MCU-20240913 win10&win11 2024-09-16 RGB desktop control software
    FileVersion System Updated Date brief introduction download
    FileVersion System Updated Date brief introduction download
