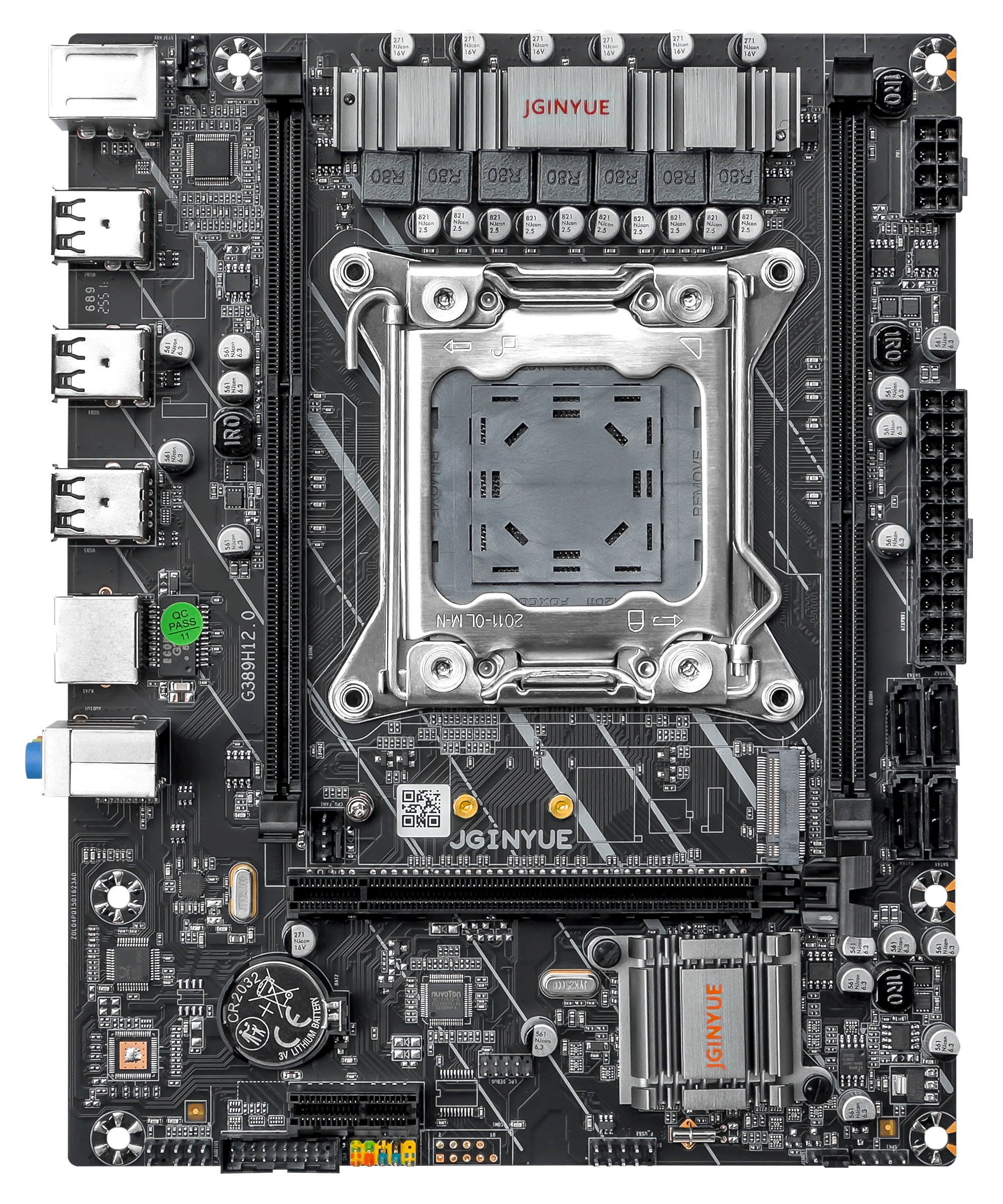

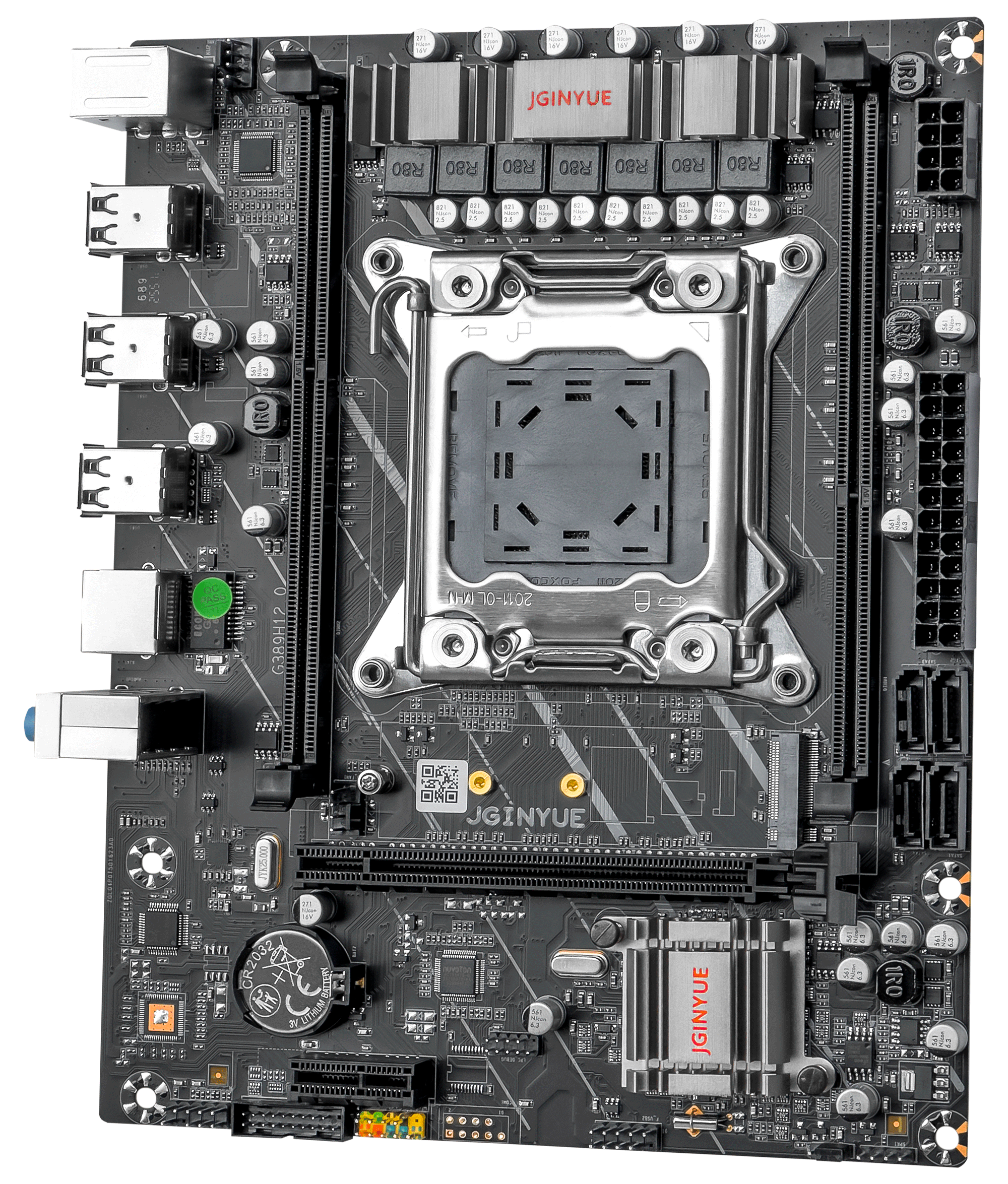

Motherboard model
-
JY-X79M-V3
-
chipset
-
Intel 6 Series
-
CPU pins
-
Supports Intel LGA2011 Intel Xeon E5 V1 V2 series processors
-
Memory slot
-
2 x DDR3 dual channel
-
Memory capacity
-
The maximum capacity supports 32GB
-
Memory standard
-
Supports dual channel 1066MHz/1333MHz/1600MHz
-
Storage interface
-
1 × M.2 NVME protocol; 4×SATA2.0
-
USB port
-
6×USB2.0
-
USB pin
-
1 x USB 2.0, 1 x USB 3.0 (speed 2.0)
-
extended interface
-
1 x PCI Express x16 slot; 1 x PCI Express x1 slot
-
network card interface
-
1 x Gigabit Ethernet card
-
power supply interface
-
1×24Pin； 1×8Pin
-
Number of power supply phases
-
7-phase power supply
-
Fan pin
-
2 x 4 needles
-
other interfaces
-
PS/2； Buzzer pin
-
Motherboard size
-
21.5cmx17cm M-ATX
Alsa
Software Download
BIOS
instruction book
| FileVersion | System | Updated Date | brief introduction | download |
|---|---|---|---|---|
| realtek_hdaudio_6016761.exe | win10, 64 bits | 2024-05-09 | audio driver |
|
| FileVersion | System | Updated Date | brief introduction | download |
|---|
| FileVersion | System | Updated Date | brief introduction | download |
|---|
| FileVersion | System | Updated Date | brief introduction | download |
|---|
