mainboard/ INTEL Series/ Intel LGA1851/ JGINYUE H810M-D/B motherboard
JGINYUE H810M-D/B motherboard
Equipped with Intel H810 chipset
Supports Core Ultra 200 series processors
9-phase strong power supply, stable control performance released!
Dual channel DDR5 6400 (OC) memory, supporting up to 64GB!
Reserved WIFI interface, supporting CNVi protocol, making wireless connection more convenient.
4 x SATA3+2 x M.2 NVMe interfaces, high-speed read and write, expandable at will.
4 × 5V3 ARGB pins, MCU chip for precise light control, creating a personalized lighting effect system.
  • Details Introduction
  • specification parameter
  • download
  • Motherboard model
  • H810M-D/B
  • chipset
  • Intel H810
  • CPU slot
  • Intel LGA1851 pin supports Core Ultra 200 series processors
  • Memory slot
  • 2×DDR5
  • Memory capacity
  • 64GB
  • Memory frequency
  • Dual channel DDR5 6400 (OC)

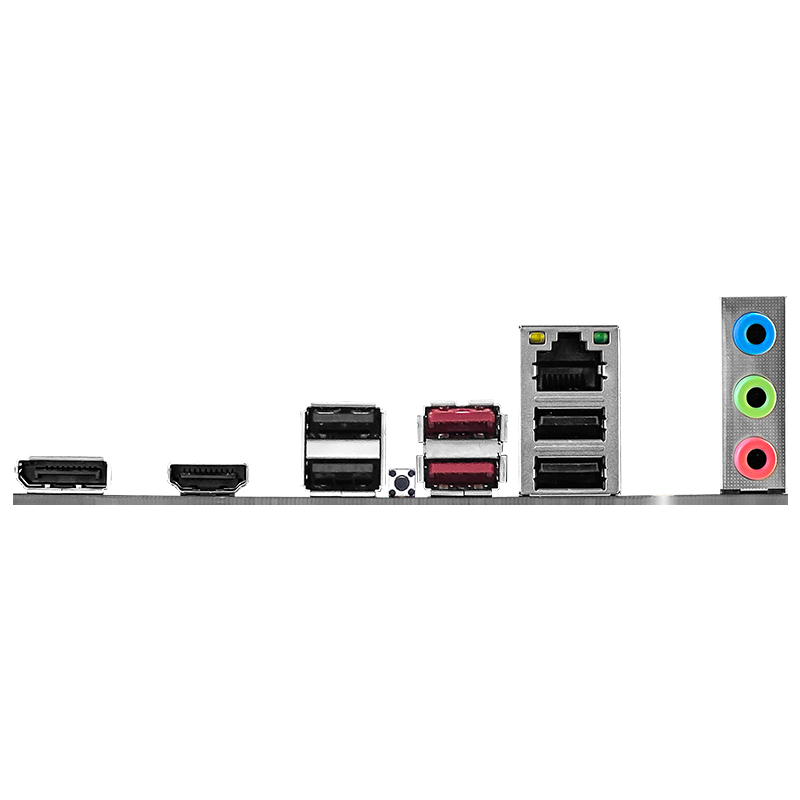

  • USB port
  • 4×USB3.2 2×USB2.0
  • USB pin
  • 1 x USB 2.0 pin bank, capable of connecting 2 additional external USB 2.0 interfaces. 1 x USB 3.0 pin bank, capable of connecting 2 additional external USB 3.2 Gen1 interfaces
  • Ethernet interface
  • 1 x Gigabit Ethernet card
  • Audio chip
  • ALC897
  • Number of power supply phases
  • 9 phases
  • Video interface
  • 1×HDMI 1×DP
  • Storage interface
  • 1×M.2 NVME4.0 ×4/1xM.2 NVME 4.0 ×2 4×SATA3.0
  • expansion slot
  • 1 x PCl Express x16 4.0 slot 1 x PCl Express x1 slot
  • ARGB needle arrangement
  • 4 x ARGB 5V3 pins (MCU independent control chip)
  • Fan pin
  • 4 × 4 needle arrangement
  • WiFi interface
  • 1 x WiFi interface supports CNVI protocol module
  • Dimensions
  • 22×18cm M-ATX
  • power supply interface
  • 24PIN+8PIN
  • Other interfaces
  • diagnostic light, CMOS button
Alsa
Software Download
BIOS
instruction book
    • FileVersion System Updated Date brief introduction download
    Realtek_Audio_Winx64_6_0_9183_1 win10,win11 64 bits 2024-05-09 audio driver
    Realtek_Install_Win10_10051 win10,win11 64 bits 2024-05-09 Network Driver
    • FileVersion System Updated Date brief introduction download
    OpenRGB-MCU-20240913 win10&win11 2024-09-16 RGB desktop control software
    FileVersion System Updated Date brief introduction download
    FileVersion System Updated Date brief introduction download
